Window Washer

Check that the window washer system injects washer fluid to the specified area of the windshield shown in the figure.

Front injection position: A: 250 mm (9.84 in)

B: 535 mm (21.1 in)

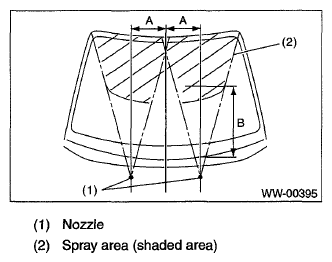

Fig 1: Identifying Injects Washer Fluid Spray Area

Courtesy of SUBARU OF AMERICA, INC.

Rear injection position: Wagon model

A: 70 mm (2.8 in)

B: 70°

Fig 2: Identifying Injects Washer Fluid Spray Area - Wagon Model

Courtesy of SUBARU OF AMERICA, INC.
