Front Differential
>>
6MT
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

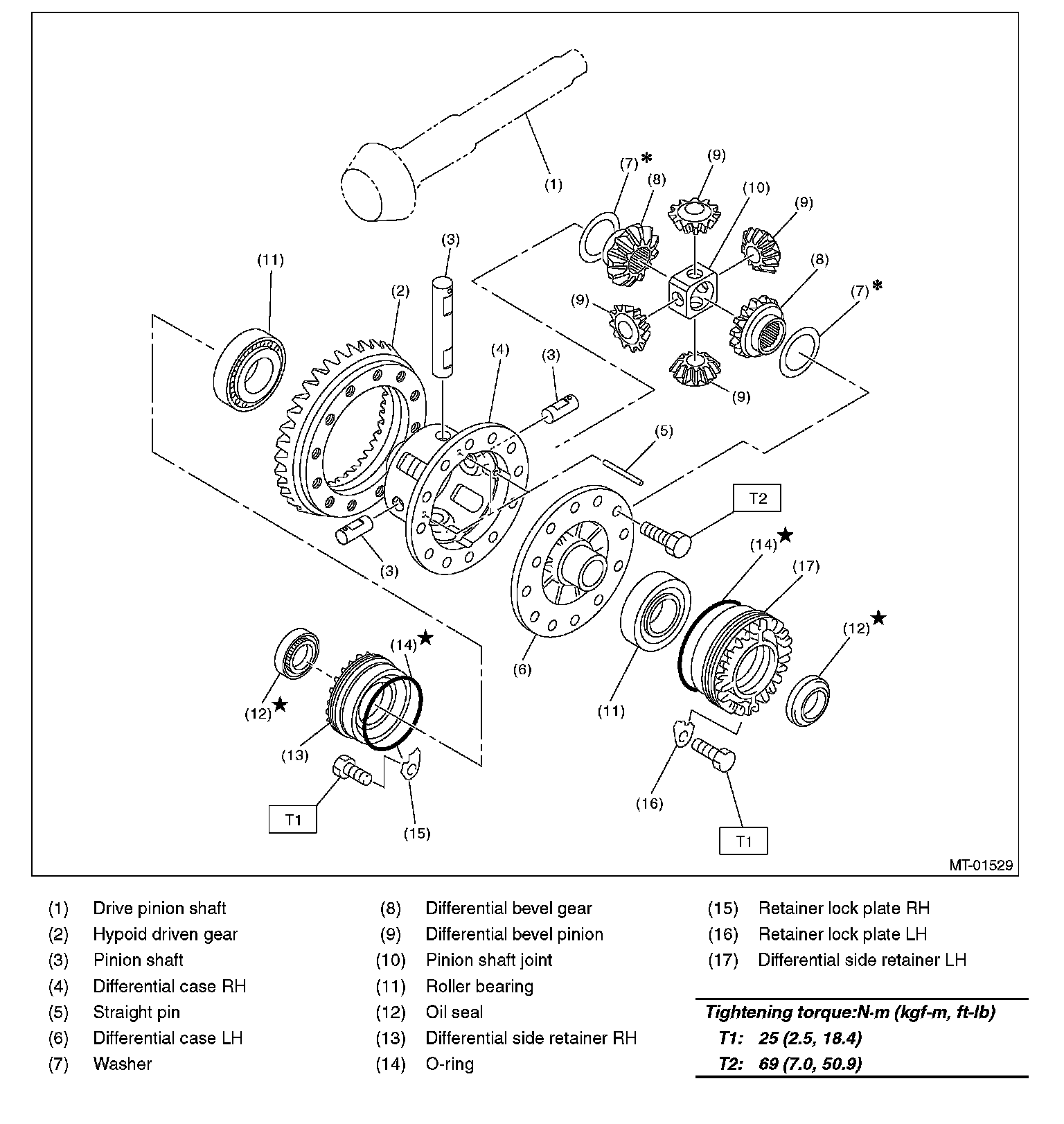

6MT
FRONT DIFFERENTIAL
