R1-R318 & AB17-AB56

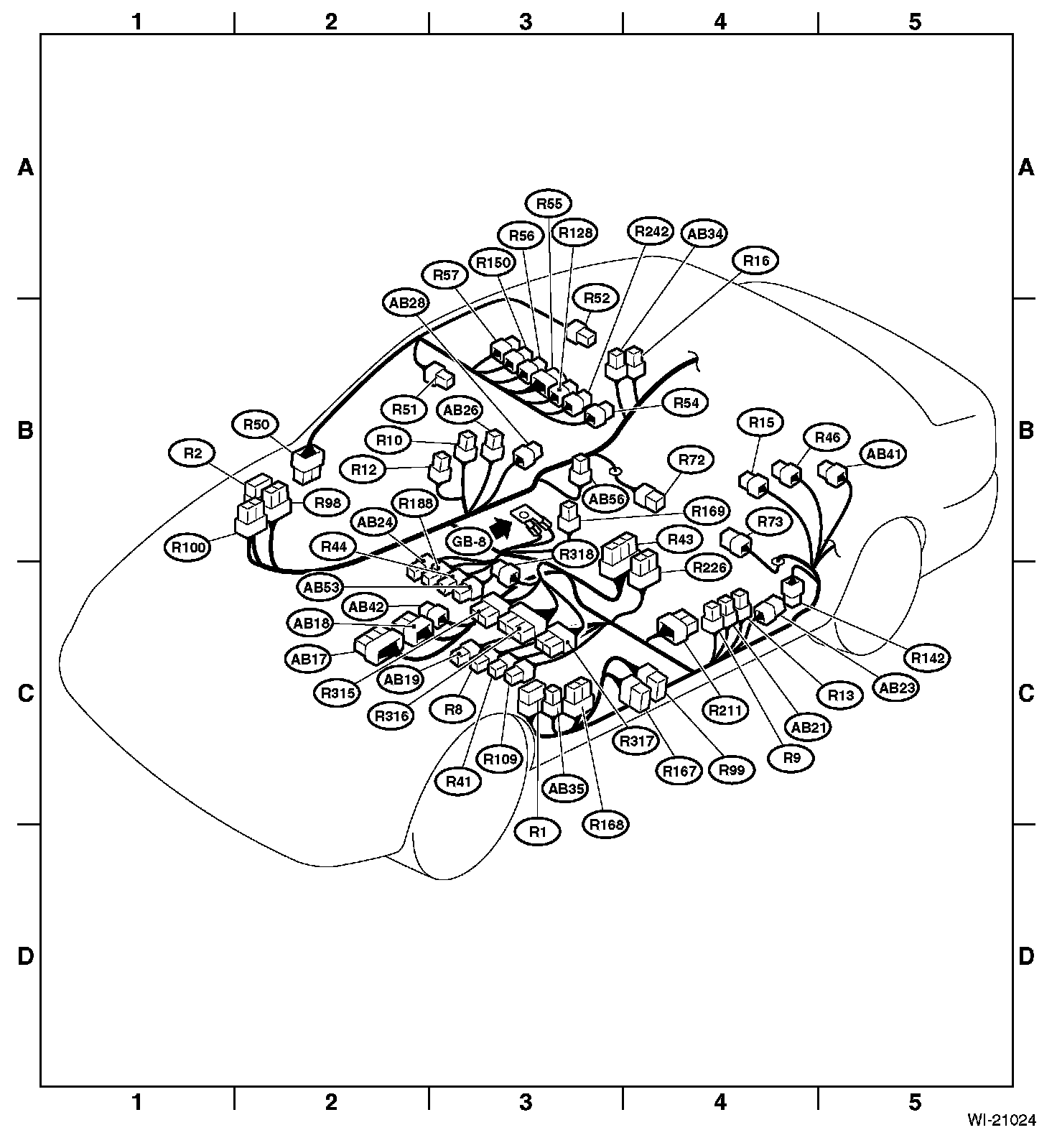

Rear Wiring Harness (Sedan Model)

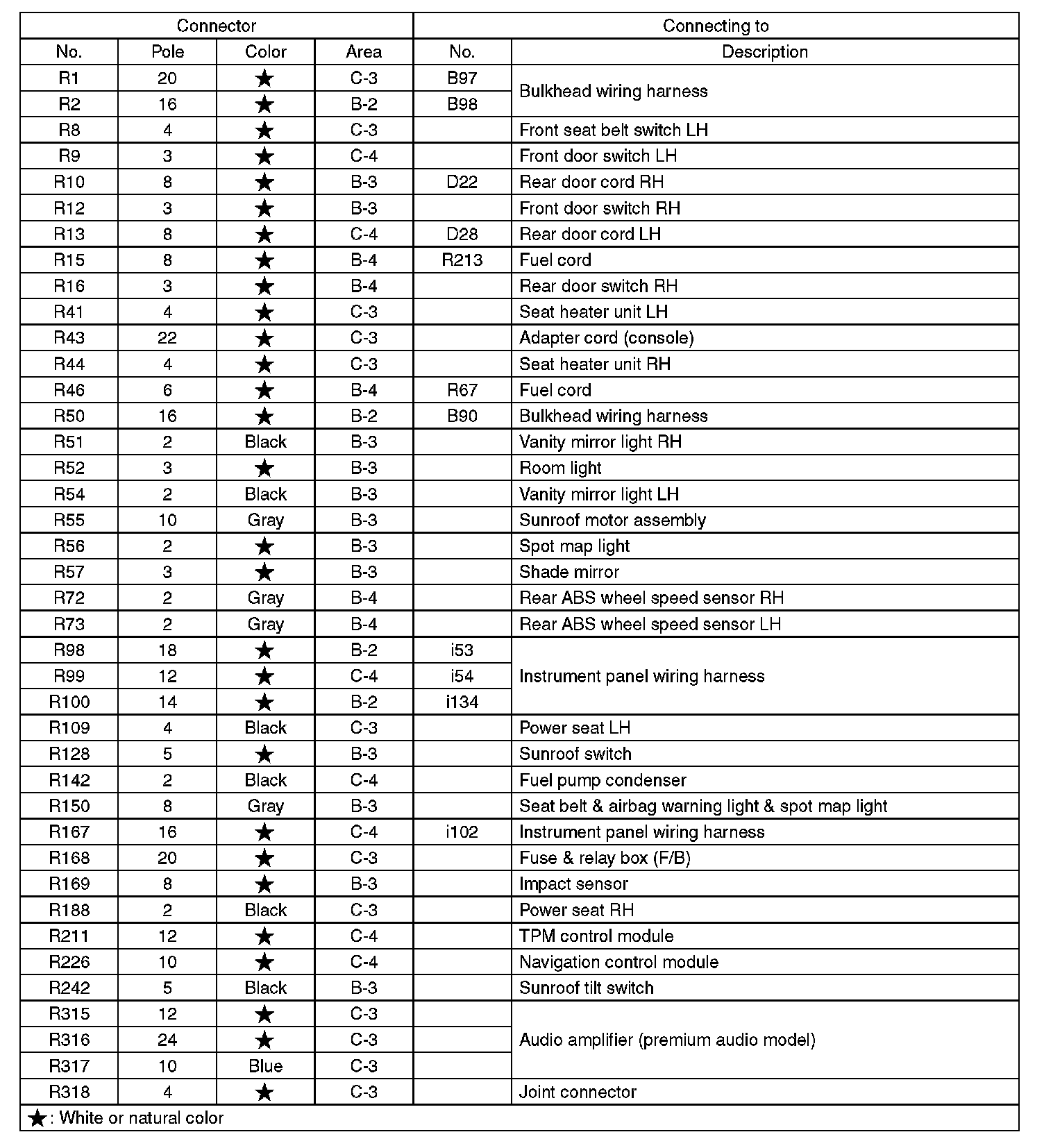

R1-R318:




AB17-AB56:




Area View:

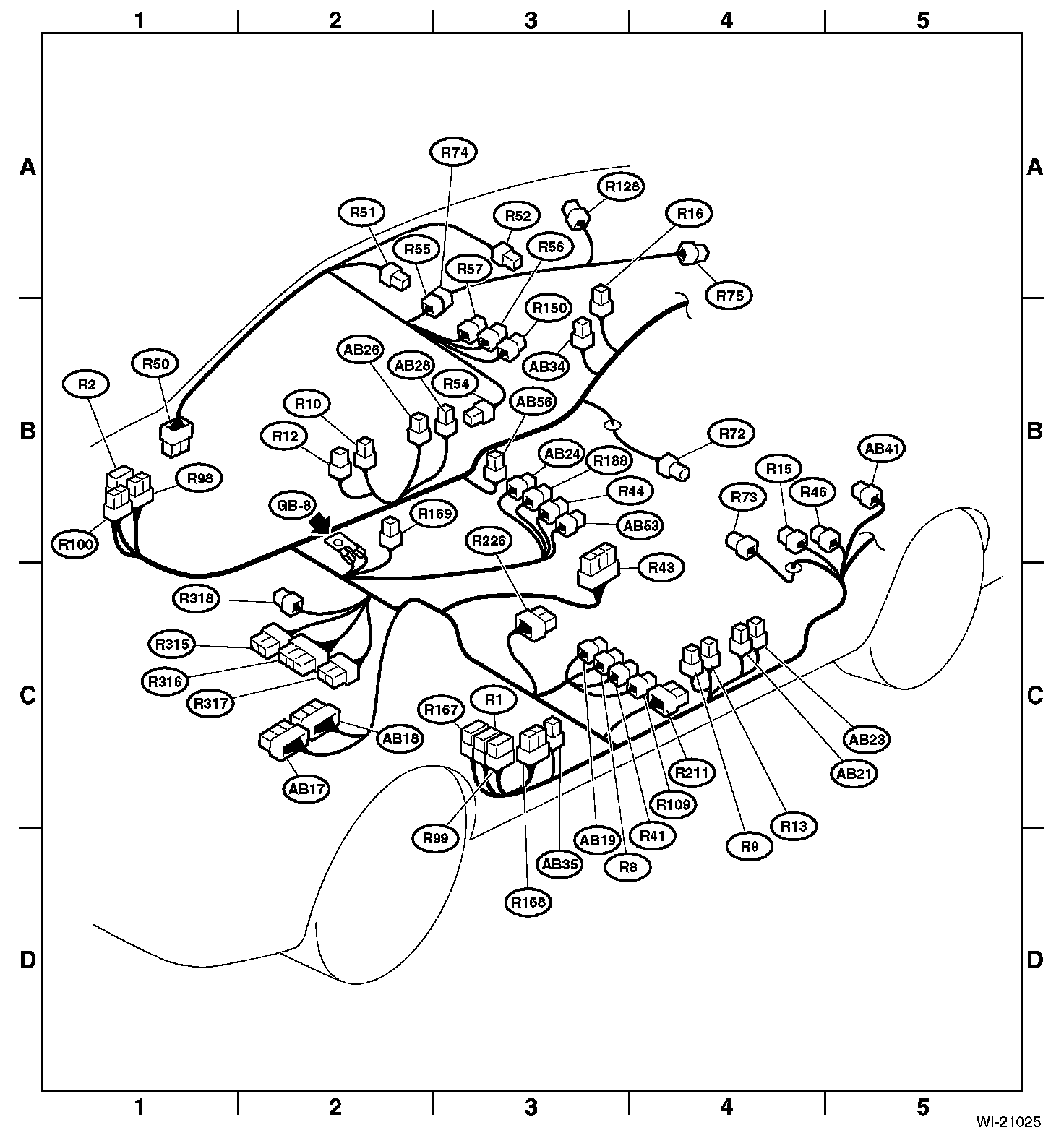

Rear Wiring Harness (Wagon Model)

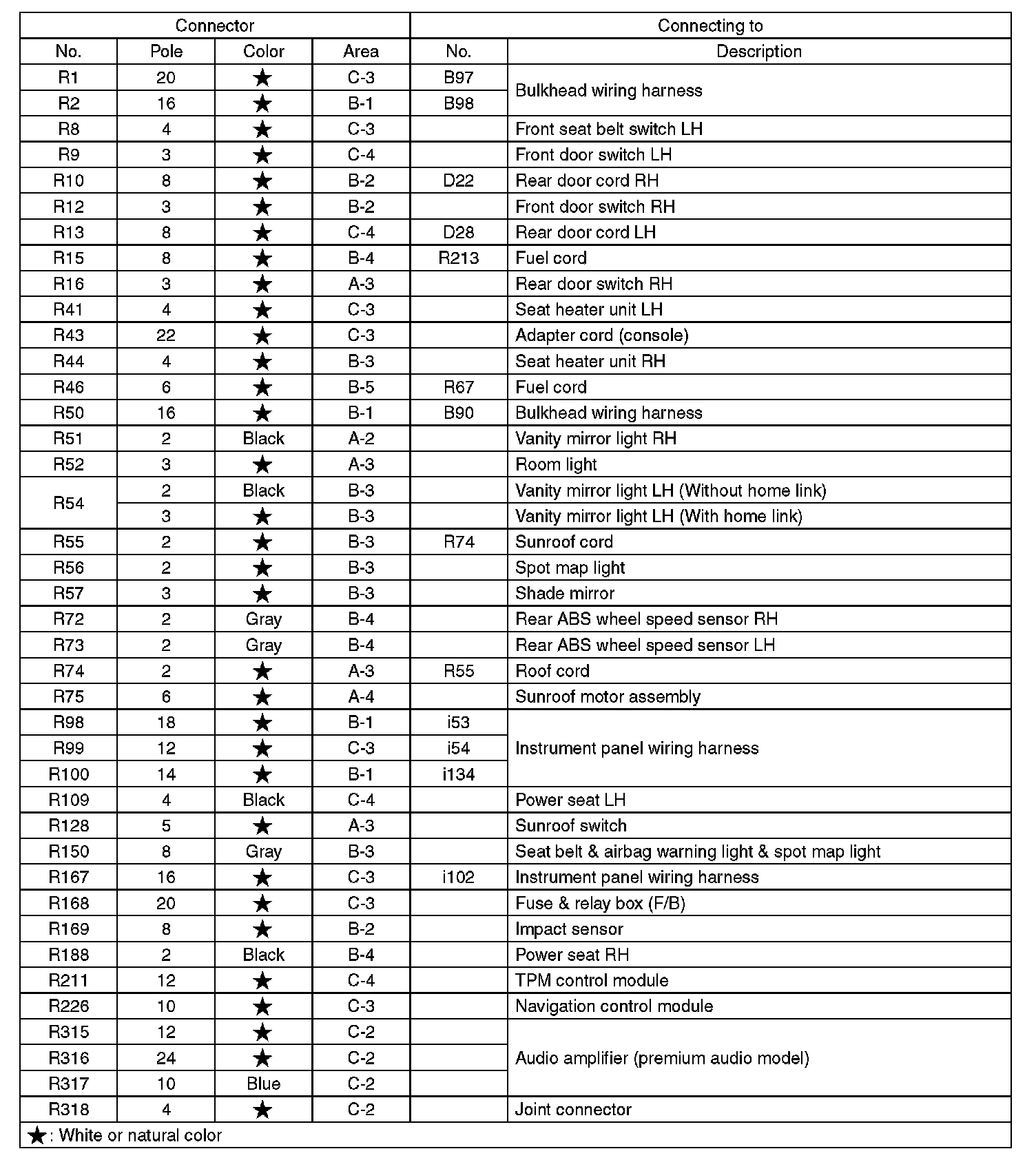

R1-R138:




AB17-AB56:




Area View:
