Check Buzzer

CHECK BUZZER
DIAGNOSIS: Output signal circuit of buzzer is open or shorted.
TROUBLE SYMPTOM: Buzzer remains beeping.

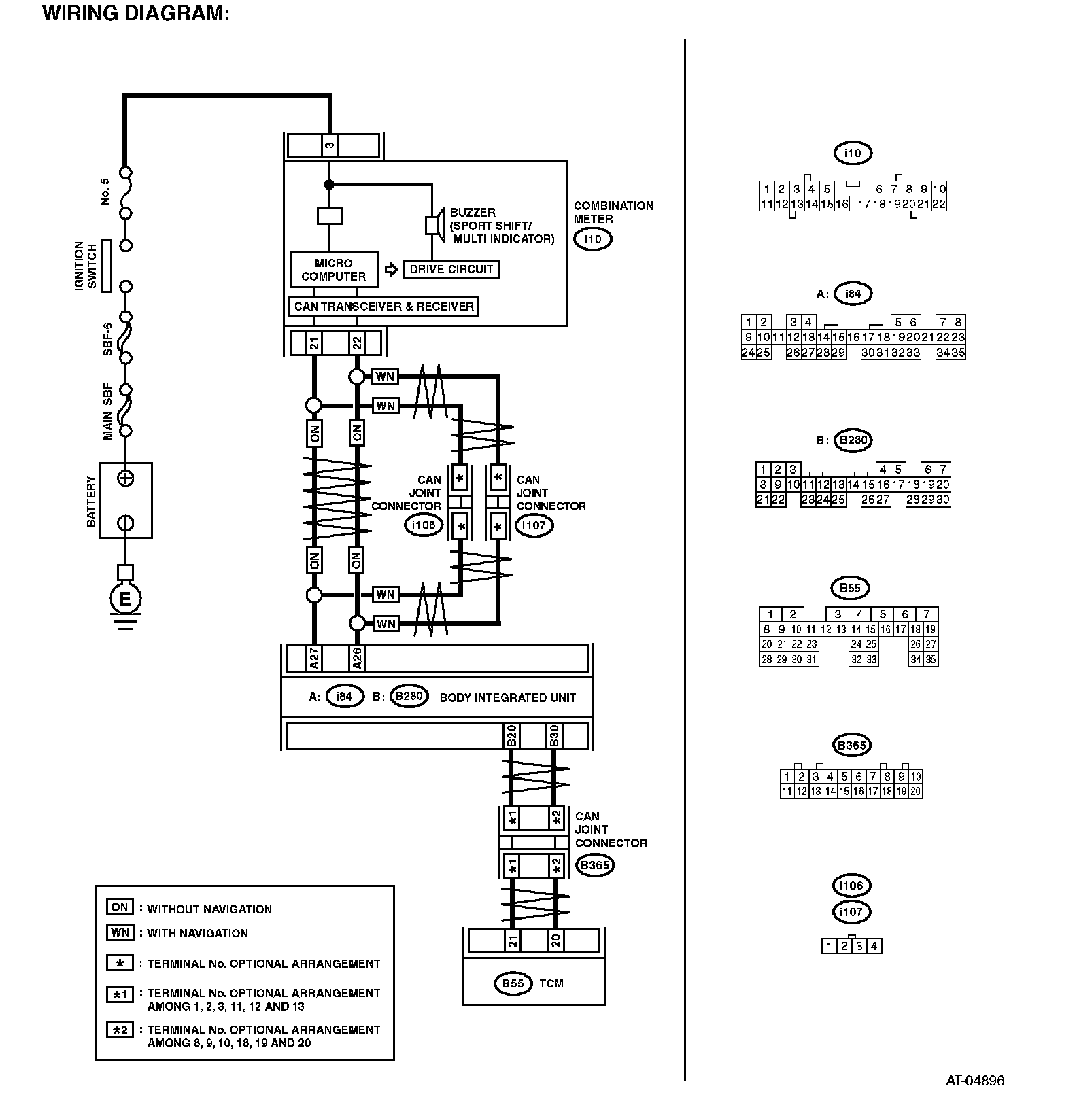

WIRING DIAGRAM:

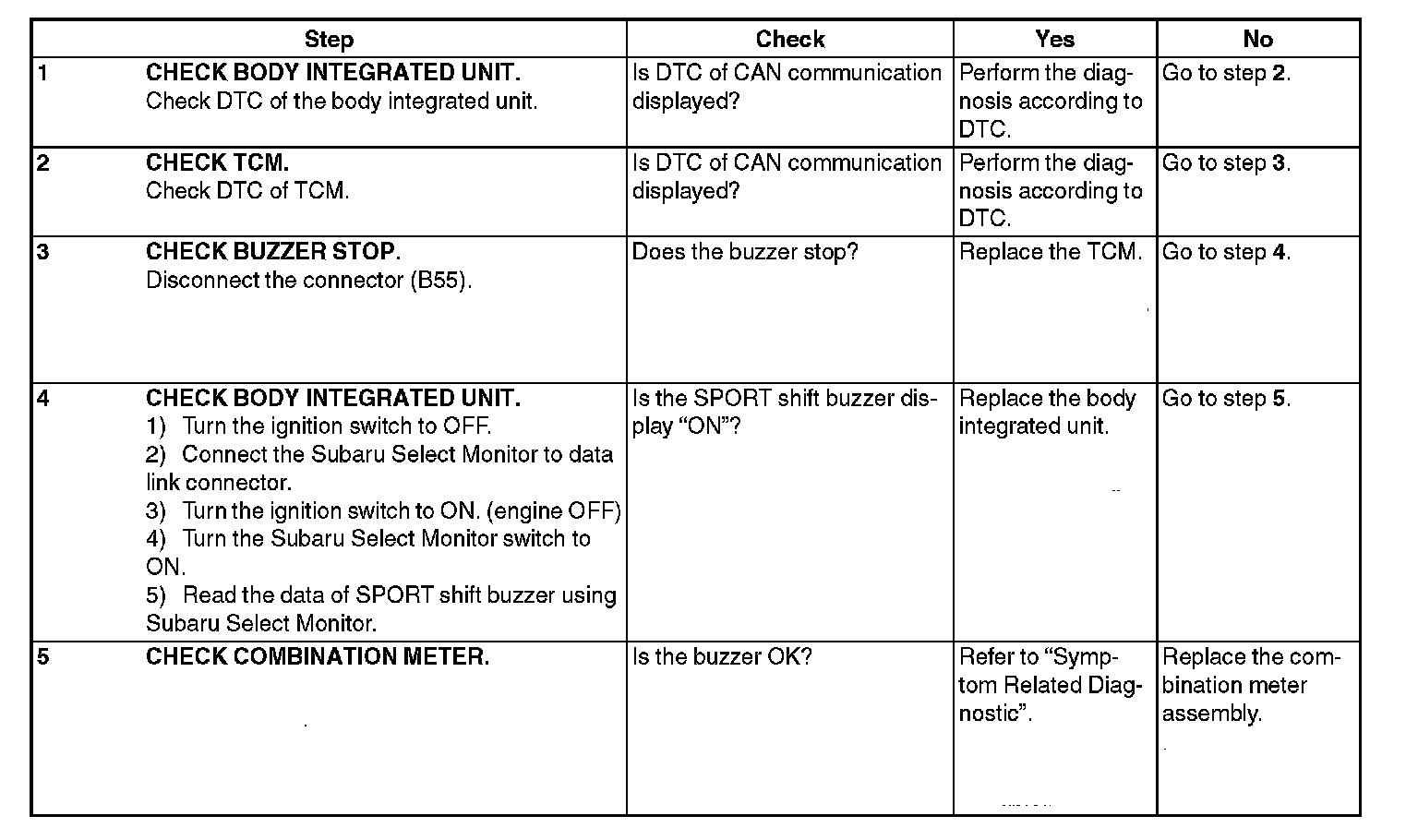

Step 1-Step 6:
