Control Module

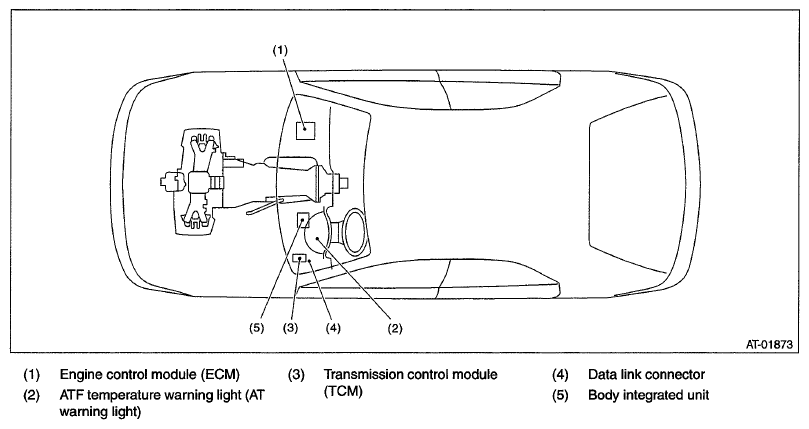

Fig 1: Identifying Electrical Component Location (1 Of 2)
G06337495Courtesy of SUBARU OF AMERICA, INC.

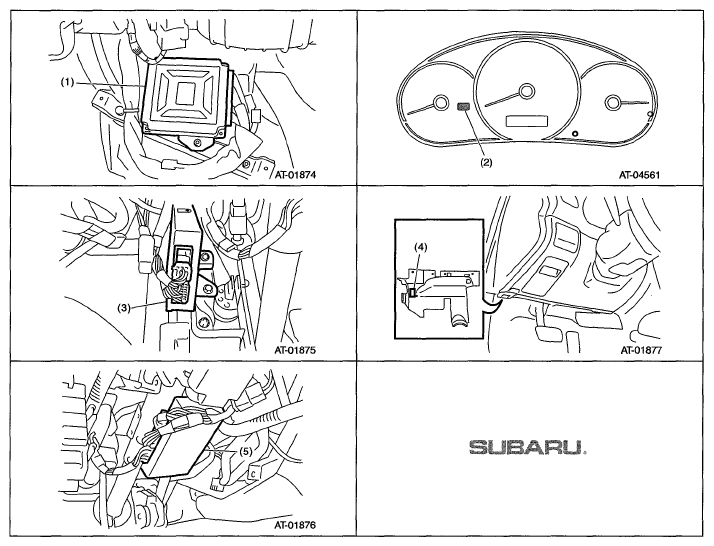

Fig 2: Identifying Electrical Component Location (2 Of 2)
G05661279Courtesy of SUBARU OF AMERICA, INC.
