Oil Pump Housing: Adjustment

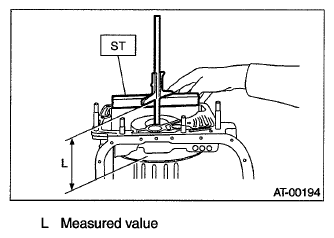

Using the ST, measure the length "L", from the mating surface of the transmission to the recessed portion of the high clutch drum.
ST 398643600 GAUGE

Fig 1: Measuring Length From Mating Surface Of Transmission To Recessed Portion Of High Clutch Drum
Courtesy of SUBARU OF AMERICA, INC.

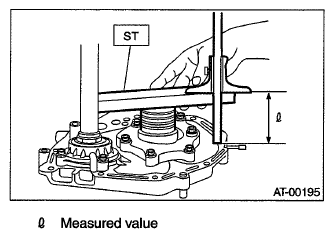

Using the ST, measure the length "L" from the oil pump housing mating surface to the top surface of the oil pump cover with the thrust needle bearing.
ST 398643600 GAUGE

Fig 2: Measuring Length From Oil Pump Housing Mating Surface To Top Surface Of Oil Pump Cover
Courtesy of SUBARU OF AMERICA, INC.

Calculation of total end play

Select a suitable bearing race from the table below so that clearance C will be within 0.25 to 0.55 mm (0.0098 to 0.0217 in).

C = (L + G) - l

TOTAL END PLAY LEGENDS

C	Clearance between concave section of high clutch and end of clutch drum support
L	Length from case mating surface to the concave portion of the high clutch
G	Gasket thickness [0.28 mm (0.0110 in)]
l	Height from the oil pump housing mating surface to the upper surface of the oil pump cover with the thrust needle bearing.

Fig 3: Identifying Total End Play Legend Specification

Courtesy of SUBARU OF AMERICA, INC.

THRUST NEEDLE BEARING THICKNESS SPECIFICATIONS

After completing the total end play adjustment, insert the bearing race into the high clutch race. Apply Vaseline, and install the thrust needle bearing to the oil pump cover.
After correctly installing the new gasket to the case mating surface, carefully install the oil pump housing assembly. Be careful to avoid hitting the drive pinion against the inside of case.
Install both parts with dowel pins aligned. Make sure there is no clearance at the mating surface.
