Check FWD Switch

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

Check FWD Switch

DIAGNOSIS:

^ LED does not illuminate even with the fuse installed on FWD fuse holder.
^ FWD signal circuit is open or shorted.

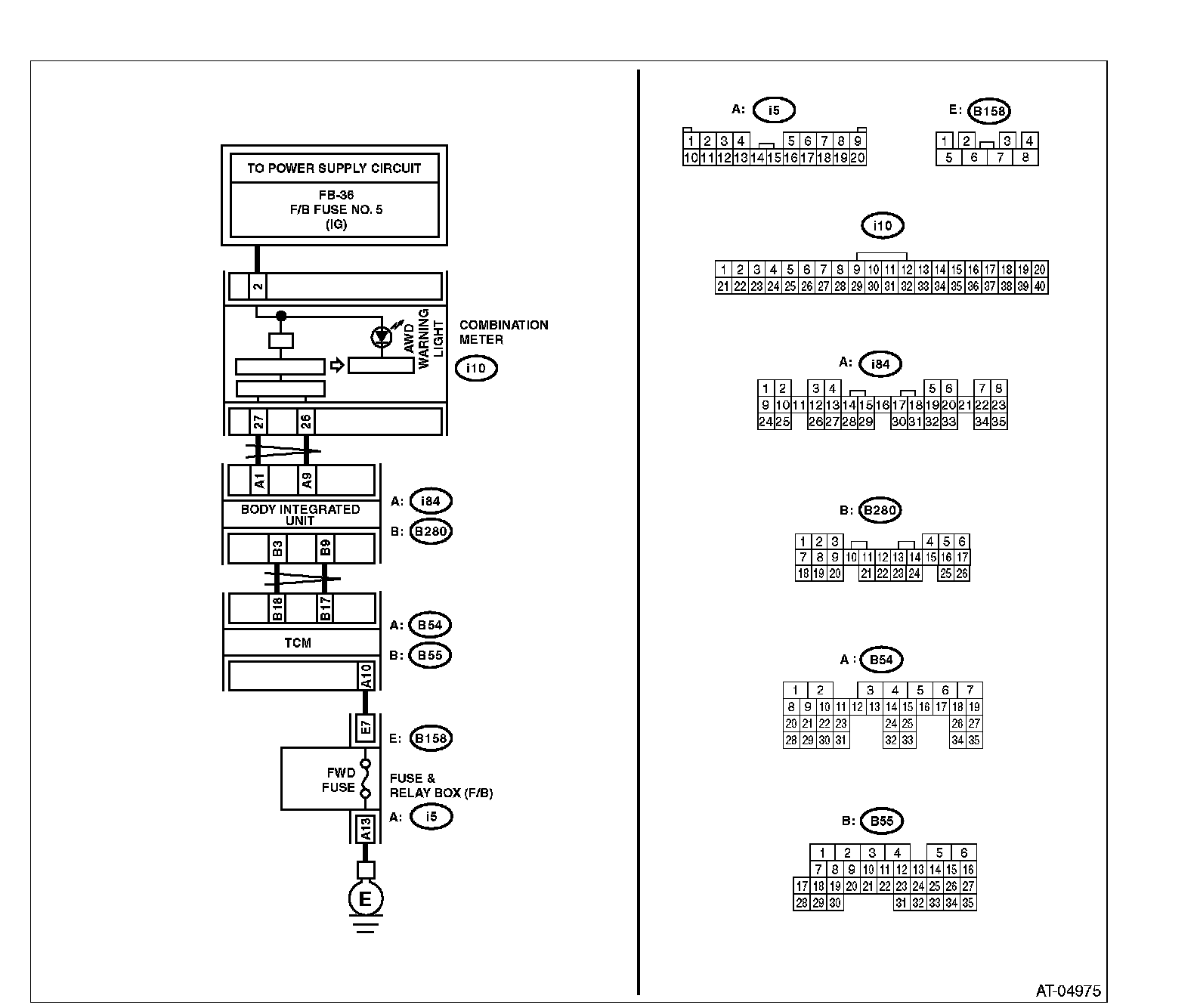

WIRING DIAGRAM:

WIRING DIAGRAM:

Step 1-Step 4:

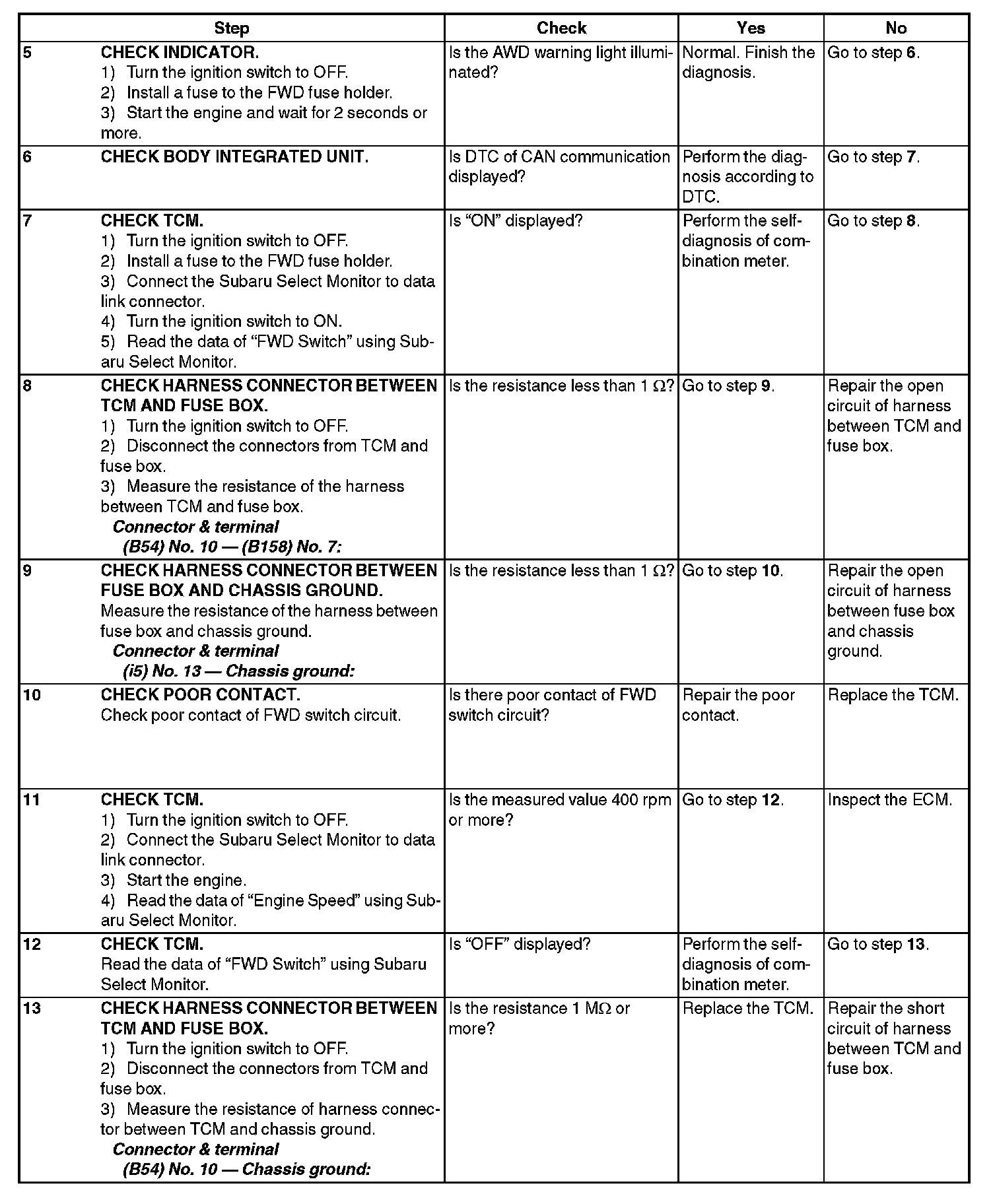

Step 5-Step 13:
