System Specifications
General Description
SPECIFICATION
1.

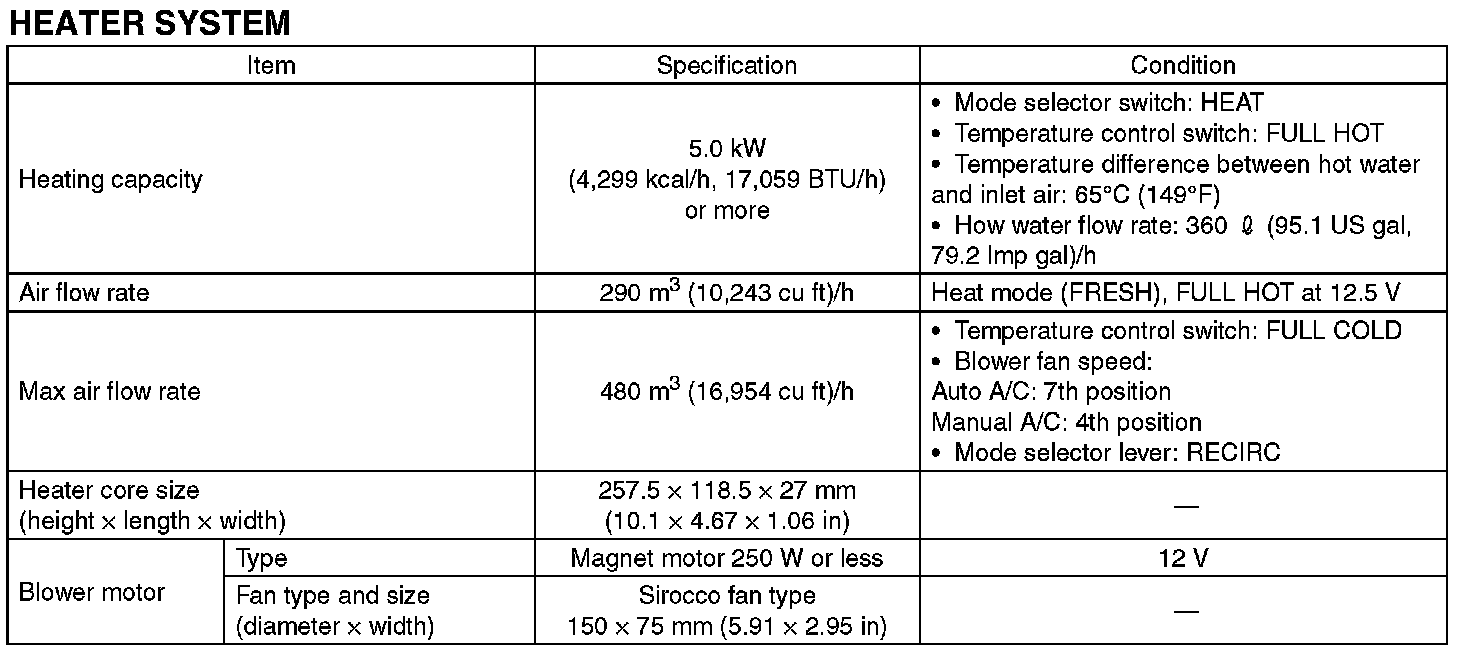

HEATER SYSTEM
Specification:
2.
A/C SYSTEM

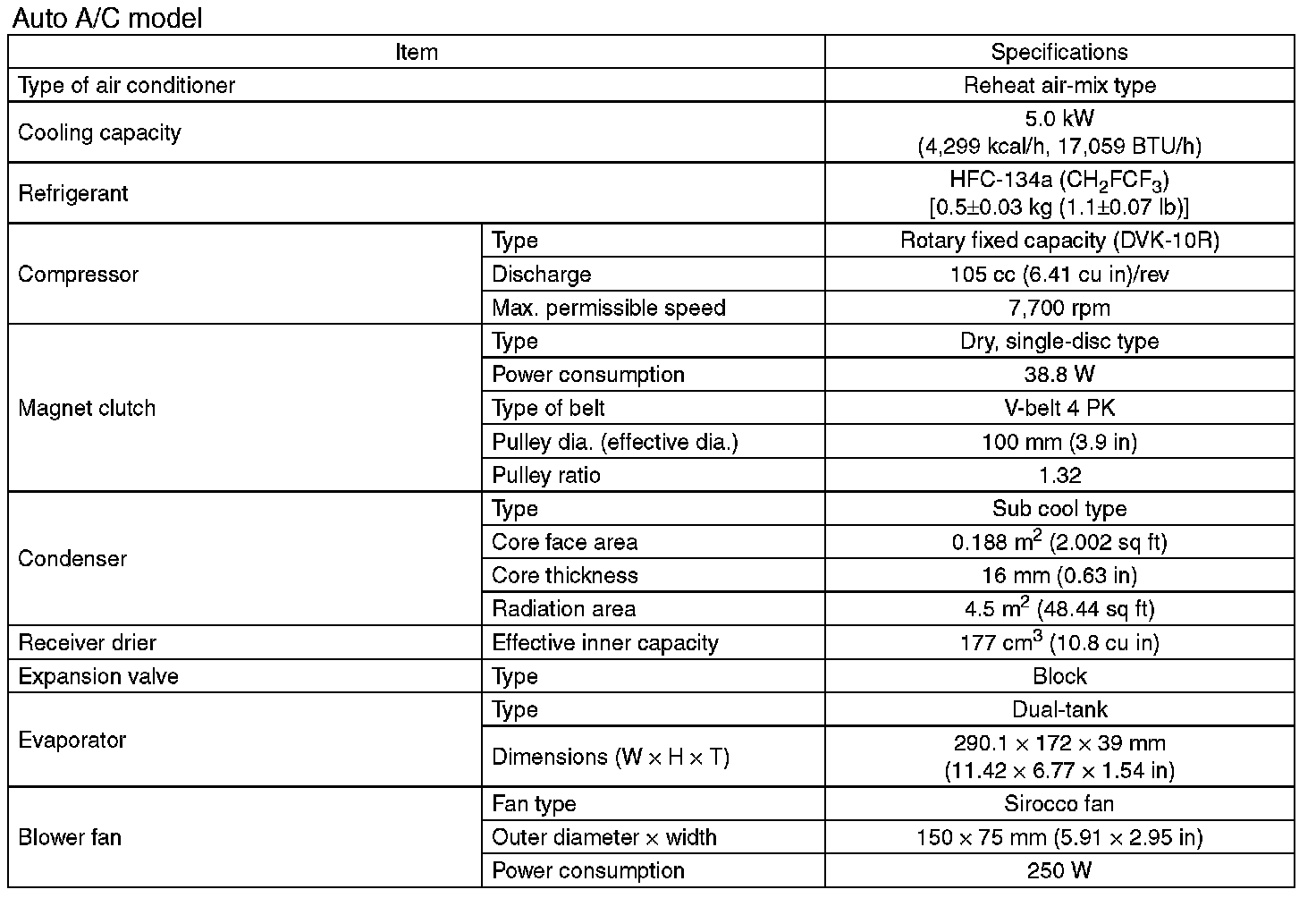

Specification (Part 1):
Specification (Part 2):

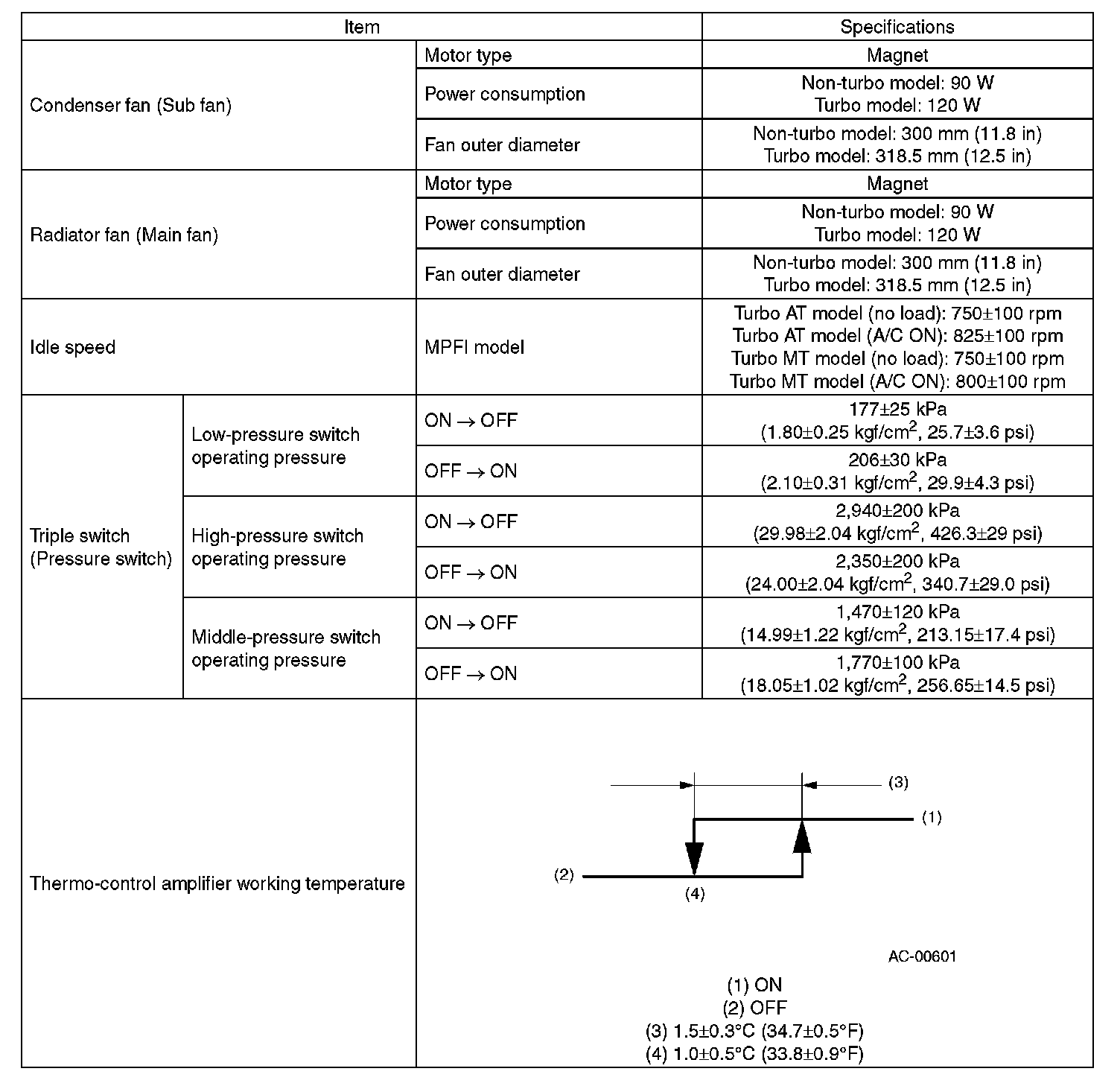

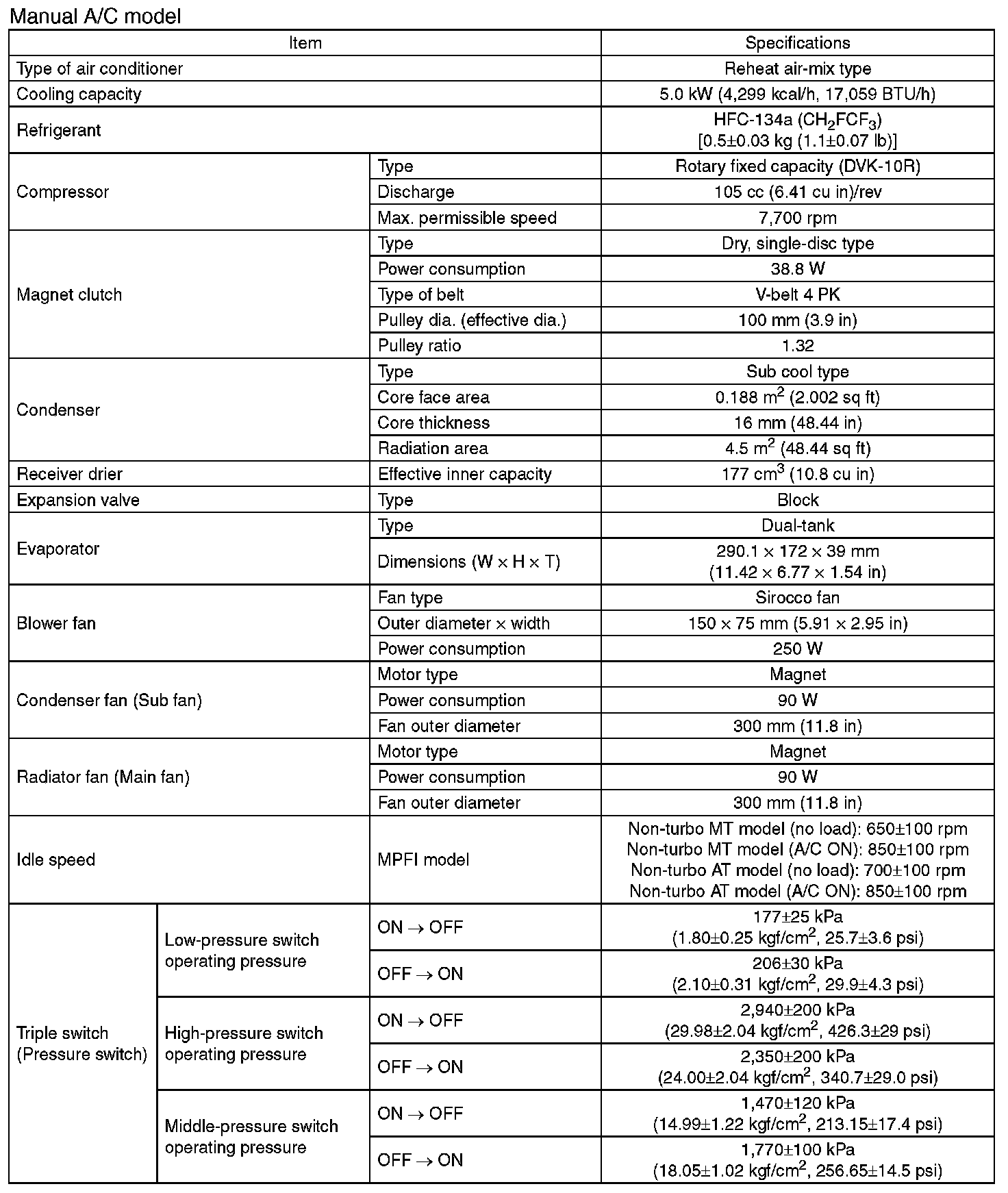

Specification (Part 1):
Specification (Part 2):
