Power Window Switch: Testing and Inspection

POWER WINDOW CONTROL SWITCH

INSPECTION

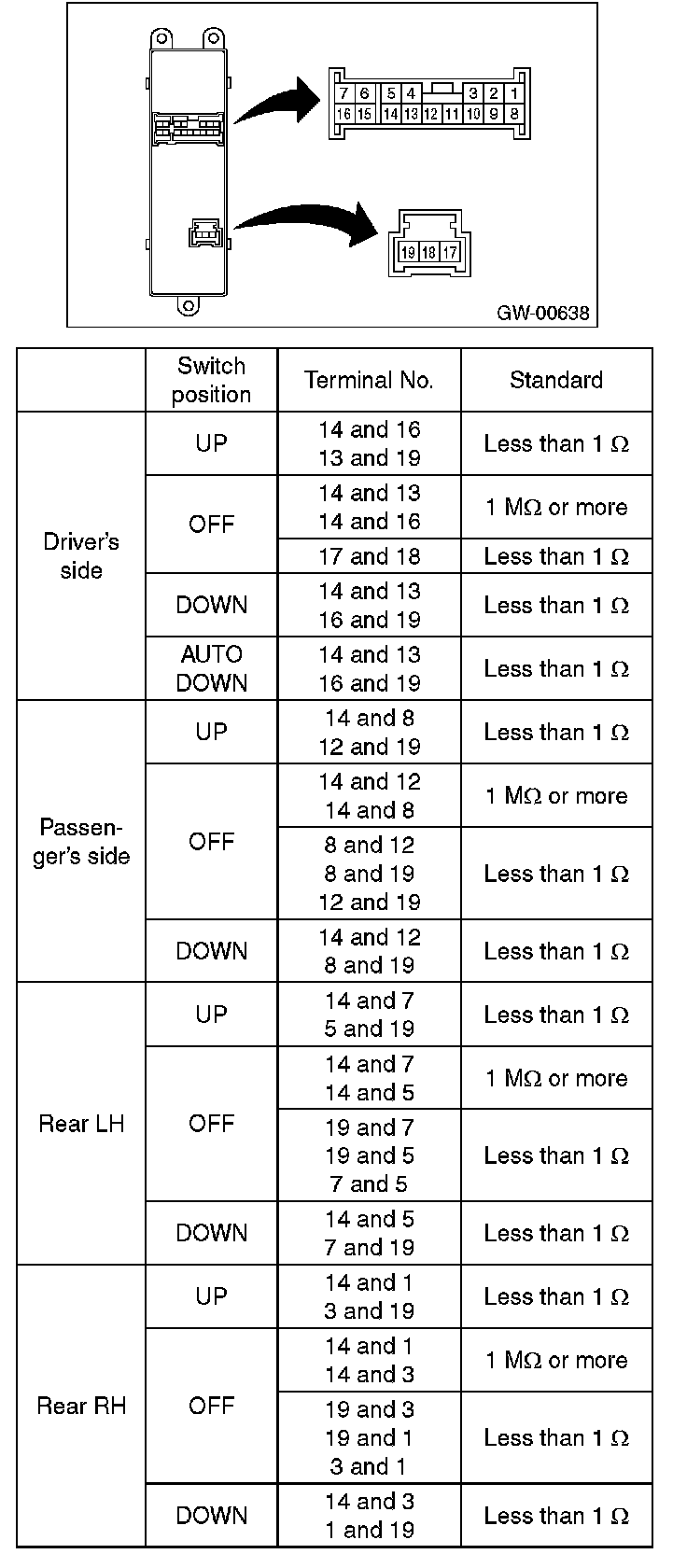

1. MAIN SWITCH

1. Remove the main switch.
2. Measure the switch resistance.







Replace the main switch if faulty.

2. SUB-SWITCH

1. Remove the sub-switch.
2. Measure the sub-switch resistance.







Replace the sub-switch if faulty
