Oil Pump: Installation

Install the oil pump to bracket.
Tightening torque: 15.7 N.m (1.6 kgf-m, 11.6 ft-lb)

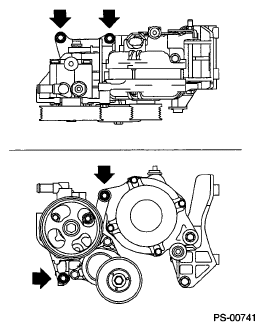

Fig 1: Locating Oil Pump Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 36.8 N.m (3.8 kgf-m, 27.1 ft-lb)

Fig 2: Locating Rear Side Of Oil Pump Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the power steering pump bracket.
Tightening torque: Ref. to OIL PUMP , COMPONENT, General Description.

Fig 3: Identifying Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
After installing the oil pump, fill the oil pump with fluid while rotating the pulley by hand and perform air bleeding from the oil pump.
CAUTION: Always fill the oil pump with the fluid to prevent abnormal noise and seizure of the oil pump.
Connect the pressure hose and suction hose.
Tightening torque: Eye bolt 40 N.m (4.1 kgf-m, 29.5 ft-lb)

CAUTION: Be careful not to twist hoses. Twisted hoses may contact other parts.

Fig 4: Identifying Pressure Hose And Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the power steering oil pressure switch.
Install the tensioner adjuster.
Install the V-belts.
Install the pulley belt cover.
Connect the ground cable to battery.
Fill with specified power steering fluid. Ref. to POWER STEERING FLUID .
CAUTION: Never start the engine before filling with fluid; otherwise the vane pump may become seized.
