Fuel Pump




The content of this article / image reflects changes called out in
manual update 18-138-09 dated 03/11/09.

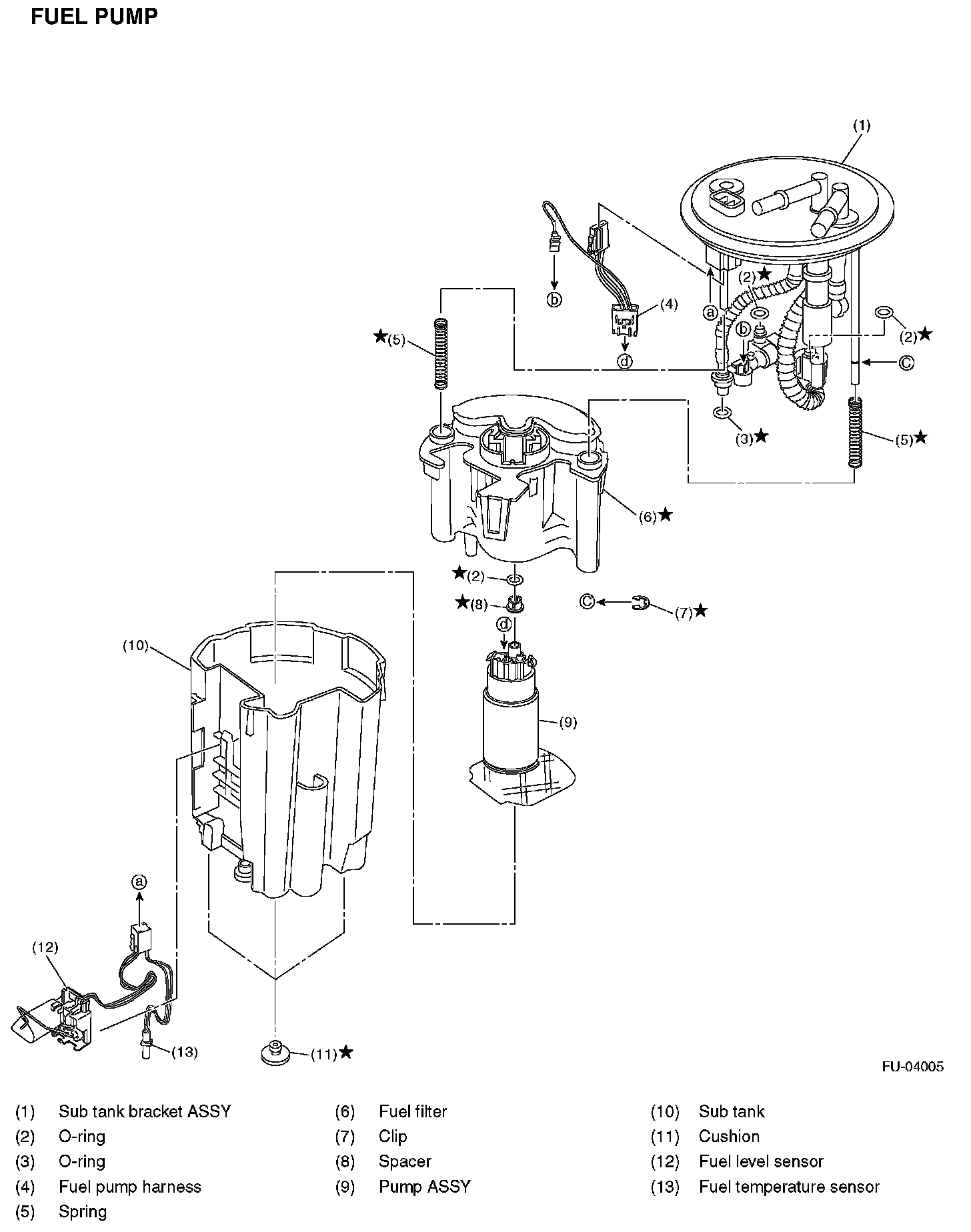

Fuel Pump:
