Check Manual Mode Switch

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

CHECK MANUAL MODE SWITCH

DIAGNOSIS:

Input signal circuit of the manual mode switch is open or shorted.

TROUBLE SYMPTOM:

Does not shift on manual mode.

WIRING DIAGRAM:

WIRING DIAGRAM:

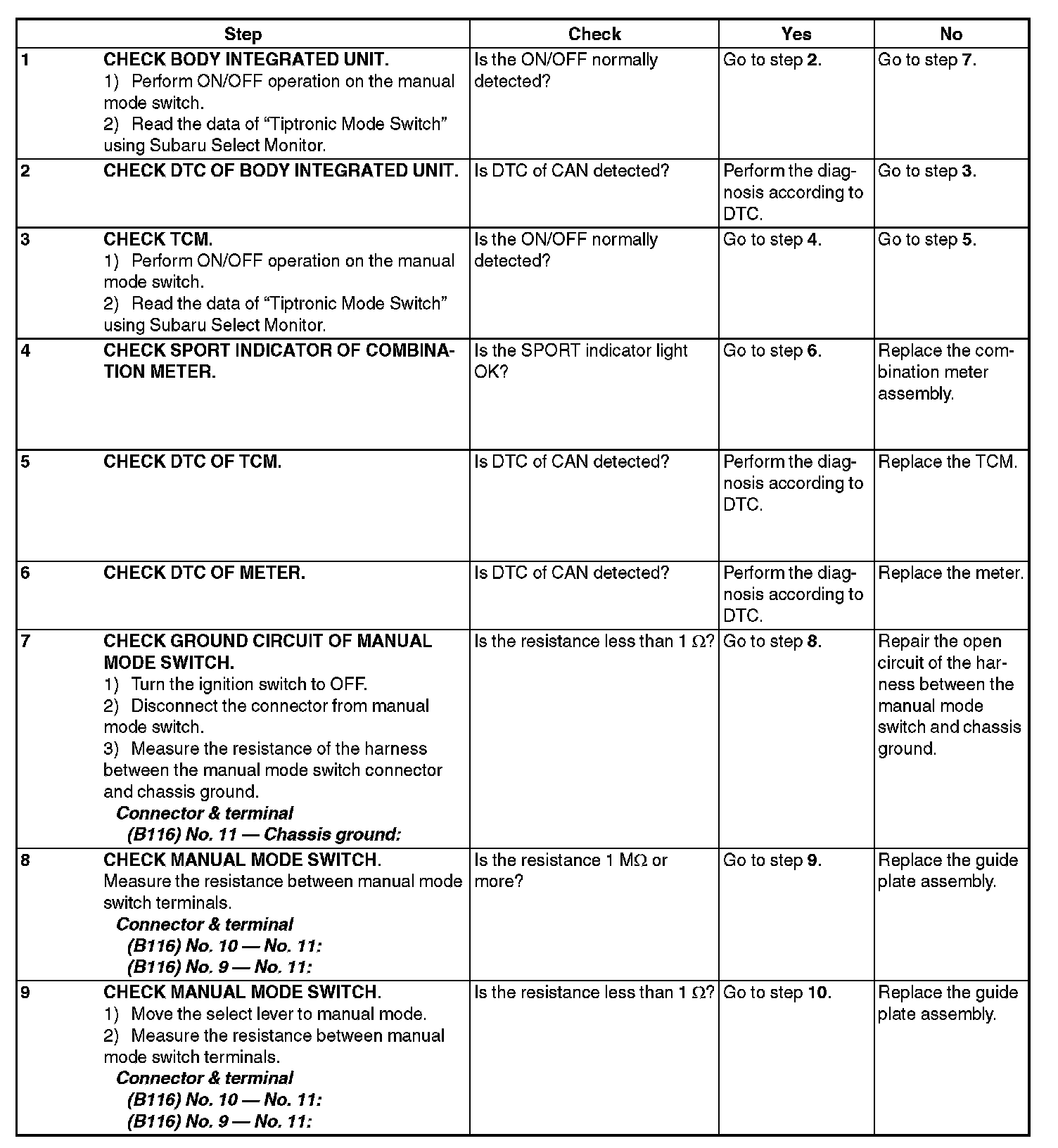

Step 1-Step 9:

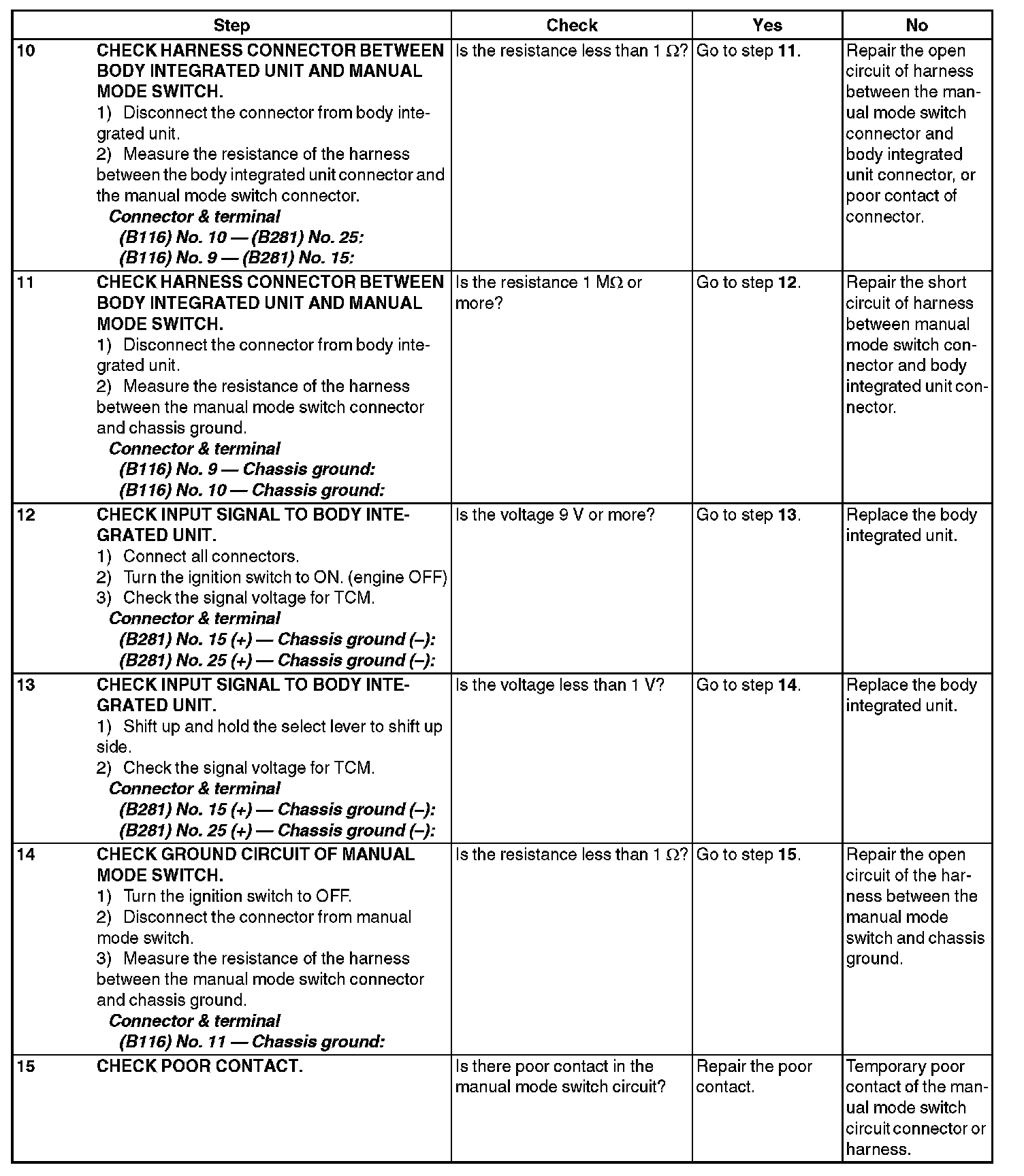

Step 10-Step 15:
