System Specifications

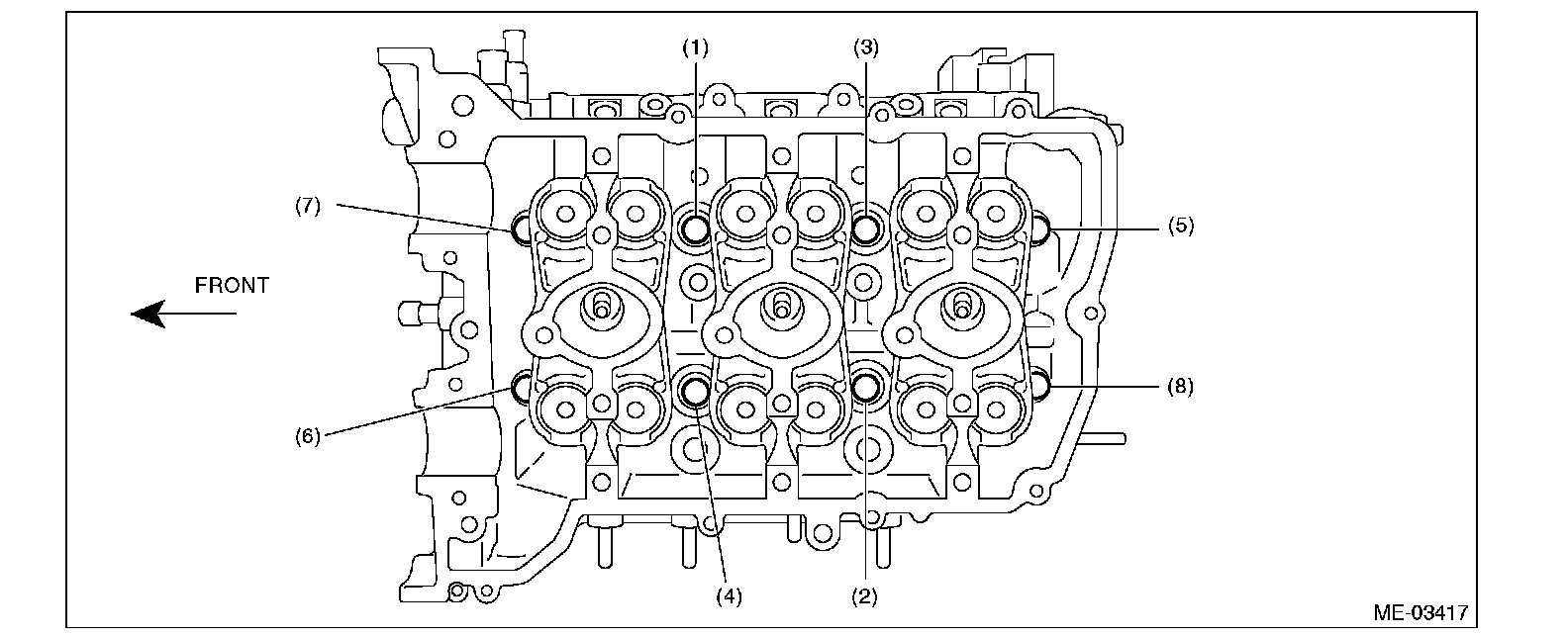

Cylinder HeadCylinder head bolts
Tighten the bolts 20 N-m (2.0 kgf-m, 14.8 ft-lb)
Tighten the bolts 50 N-m (5.1 kgf-m, 36.9 ft-lb)
In the reverse order
Loosen all the bolts 180°
Loosen them further 180°
Tighten the bolts 20 N-m (2.0 kgf-m, 14.8 ft-lb)
Tighten the bolts (1) (4) 48 N-m (4.9 kgf-m, 35.4 ft-lb)
Tighten the bolts (5) - (8) 44 N-m (4.5 kgf-m, 32.5 ft-lb)
Tighten all bolts 90°
Tighten the bolt (1) - (4) 45°
Surface warping limit (mating with cylinder block) 0.02 (0.0008)

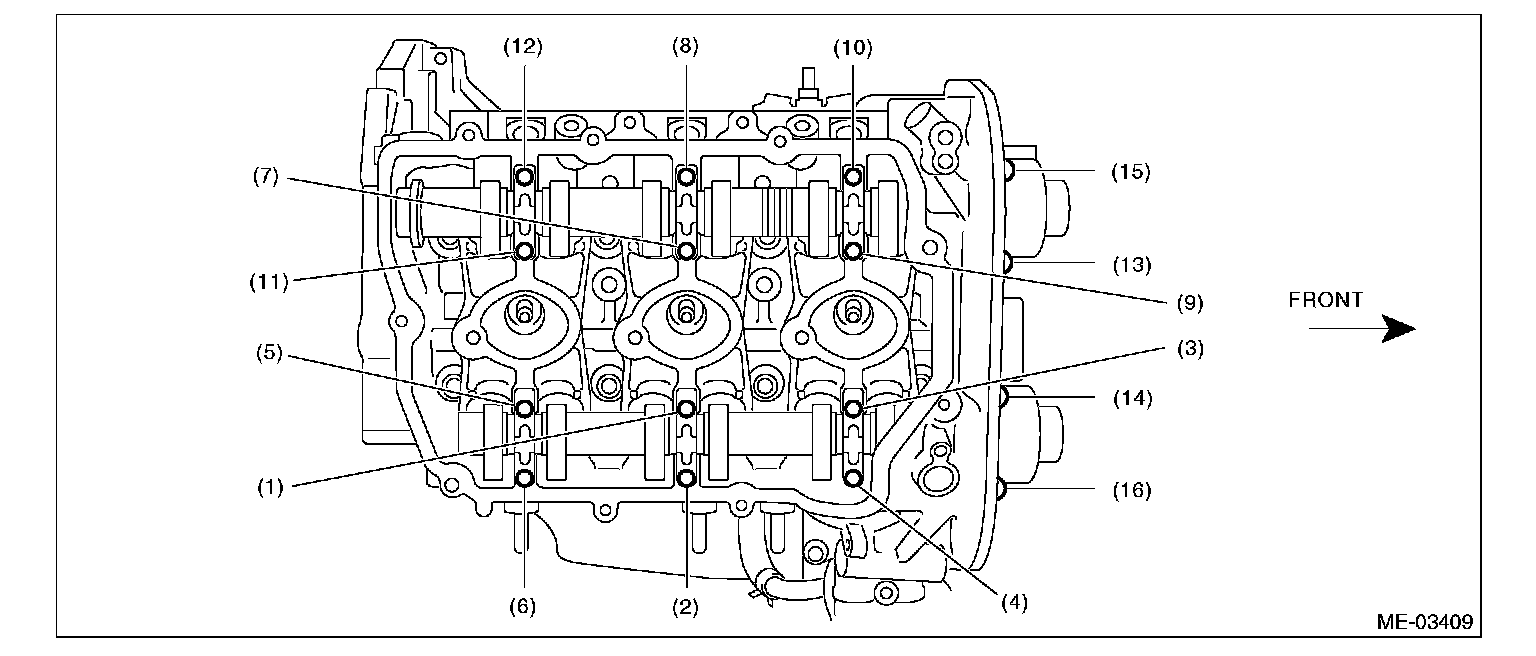

Camshaft caps
(1) - (12) 16 N-m (1.6 kgf-m, 11.8 ft-lb)
(13) - (16) 9.75 N-m (1.0 kgf-m, 7.2 ft-lb)
Cam Sprocket 29.5 N-m (3.0 kgf-m, 21.8 ft-lb)
Exhaust manifold 30 Nm (3.1 kgf-m, 22.1 ft lb)
