Reduction Driven Gear: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Set the range select lever to the "P" range.
Using a plastic hammer, install the reduction driven gear assembly and the new washer, and tighten the drive pinion lock nut.
NOTE: Use a new washer and lock nut.

Tightening torque:

100 N.m (10.2 kgf-m, 73.8 ft-lb)

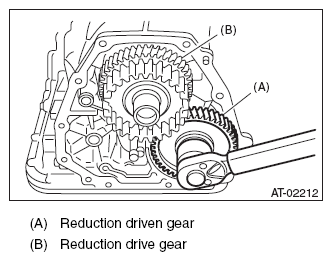

Fig 1: Tightening The Drive Pinion Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
After tightening, stake the lock nut securely.
Connect the transmission case with the extension case. < Refer to INSTALLATION , Extension Case. >
Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
