Transmission Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Remove the air breather hose. < Ref. to REMOVAL , Air Breather Hose. >
  3. Remove the transmission harness. < Ref. to REMOVAL , Transmission Harness. >
  4. Remove the secondary speed sensor. < Ref. to REMOVAL , Secondary Speed Sensor. >
  5. Remove the inhibitor switch. < Ref. to REMOVAL , Inhibitor Switch. >
  6. Remove the extension case. < Ref. to REMOVAL , Extension Case. >
  7. Remove the rear drive shaft. < Ref. to REMOVAL , Rear Drive Shaft. >
  8. Remove the transfer clutch assembly. < Ref. to REMOVAL , Transfer Clutch. >
  9. Remove the center differential carrier. < Ref. to REMOVAL , Center Differential Carrier. >
  10. Remove the transfer reduction driven gear assembly. < Ref. to REMOVAL , Transfer Reduction Driven Gear. >
  11. Remove the intermediate case. < Ref. to REMOVAL , Intermediate Case. >
  12. Remove the forward clutch assembly. < Ref. to REMOVAL , Forward Clutch Assembly. >
  13. Remove the reduction driven gear. < Ref. to REMOVAL , Reduction Driven Gear. >
  14. Remove the oil pan and control valve body. < Ref. to REMOVAL , Control Valve Body. >
    NOTE: When removing the control valve body, also remove the pressure pipe if it is attached on the case.
    Fig 1: Locating Control Valve Body
    G06654622Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the CVTF pipe using a tire lever etc.
    NOTE: Remove by hooking the stepped portion of CVTF pipe with a tire lever etc.

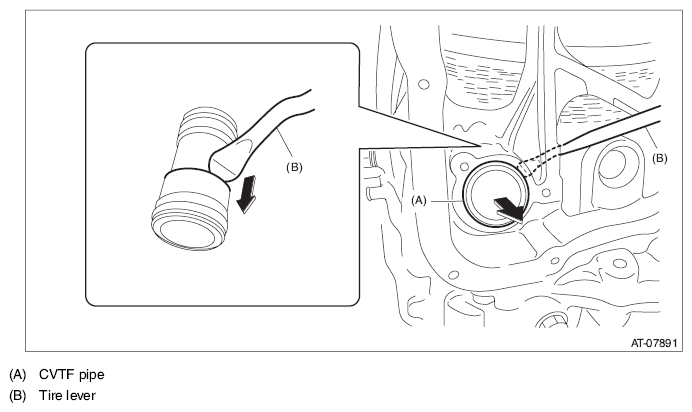

    Fig 2: Removing CVTF Pipe Using Tire Lever Etc
    G10293383Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the transmission case.
    NOTE: The total number of transmission case mounting bolts is 15.
  17. Remove the O-ring of lubrication pipe.
    Fig 3: Locating O-Ring Of Lubrication Pipe
    G06654624Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the control device system. < Ref. to REMOVAL , Transmission Control Device. >
