Components With Torque Specifications

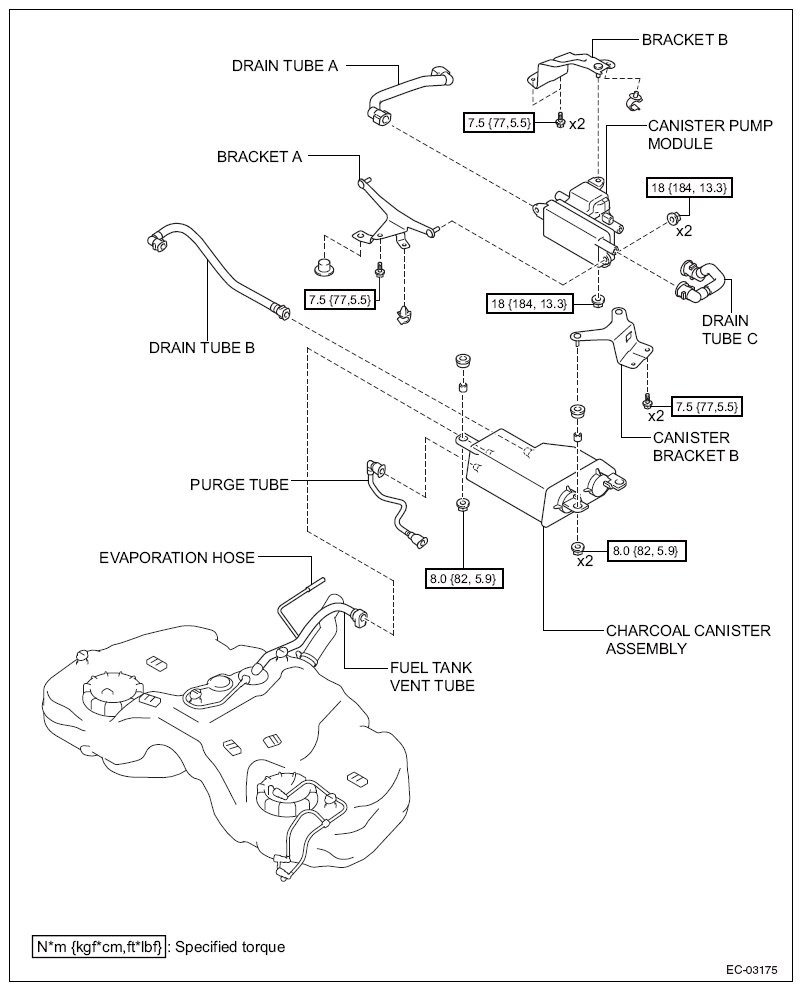

Fig 1: Exploded View Of Canister Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
