Exploded View

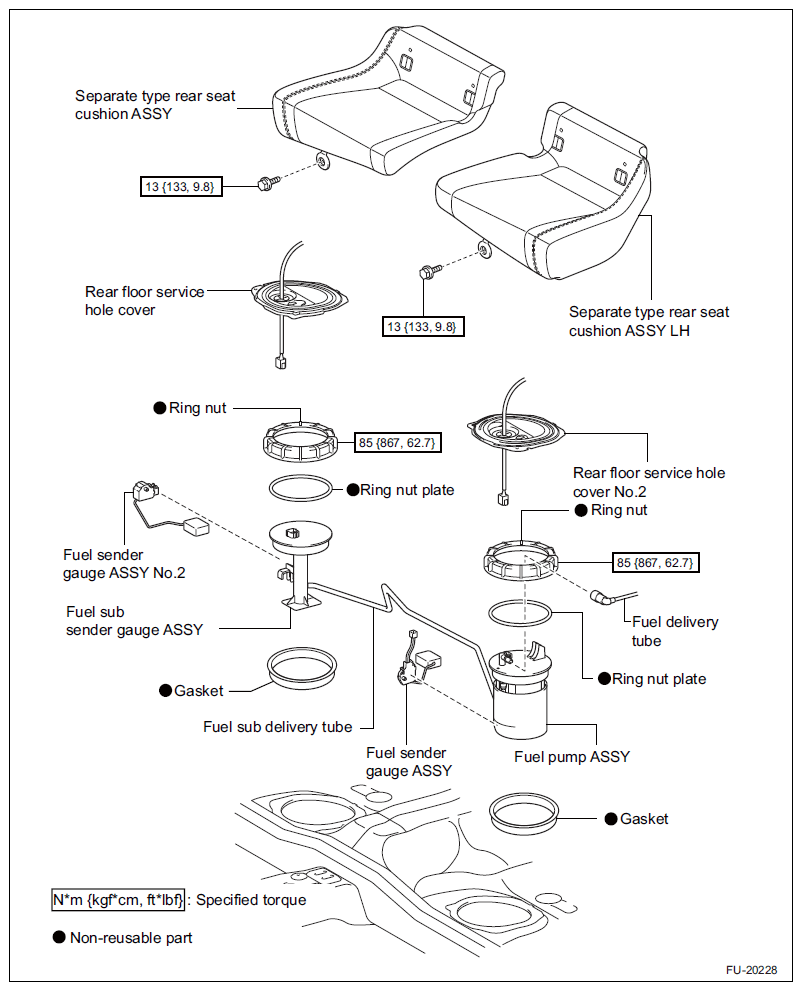

Fig 1: Fuel Sender Gauge Assembly (FA20) Components With Torque Specification
G11258865Courtesy of SUBARU OF AMERICA, INC.
