Ignition Key Lock: Replacement

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Do not allow harness and connectors to interfere or get tangled up with other parts.
If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC (VDC) Centering Mode" of the VDC. Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .

Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
Remove the column assembly - steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
Remove the ignition key lock.
1. Secure the column assembly - steering in a vise.

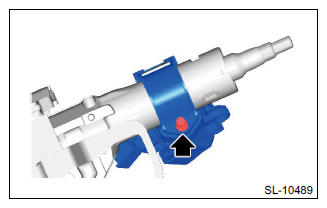

2. Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.
Courtesy of SUBARU OF AMERICA, INC.

Install the ignition key lock.

Secure the ignition key lock to the column assembly - steering.

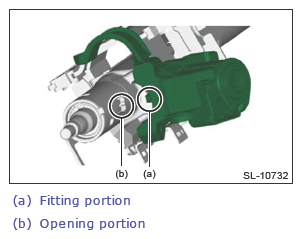

CAUTION: When installing the ignition key lock, confirm that the fitting portion of the ignition key lock is properly engaged with the opening portion of the column shaft.

Courtesy of SUBARU OF AMERICA, INC.

Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).

Install the column assembly - steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
Install the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Install the cover assembly - instrument panel LWR driver.
Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
