Transmission Control Module (TCM): Installation

Attach the TCM.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

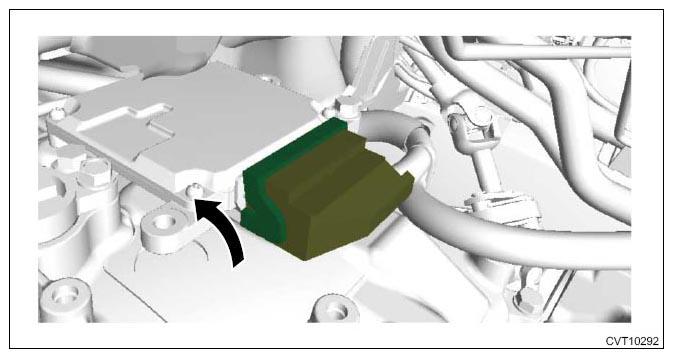

Attach the harness connector to the TCM.
NOTE: Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

Courtesy of SUBARU OF AMERICA, INC.
Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.
CAUTION: When inserting, be careful that the insulator inside transmission case cover is not turned over.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

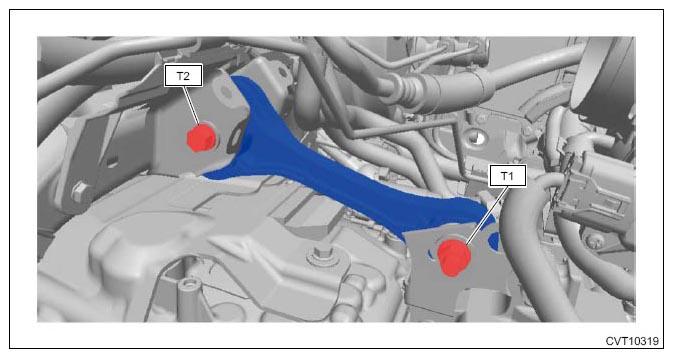

Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose and air breather hose bracket.

Courtesy of SUBARU OF AMERICA, INC.
Connect the transmission radio ground terminal.
Tightening torque:

32.3 N.m (3.3 kgf-m, 23.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Refer to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>Air Intake Boot>INSTALLATION .
Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Perform the operation of AT learning mode. Refer to TRANSMISSION (DIAGNOSTICS)>LEARNING CONTROL .
