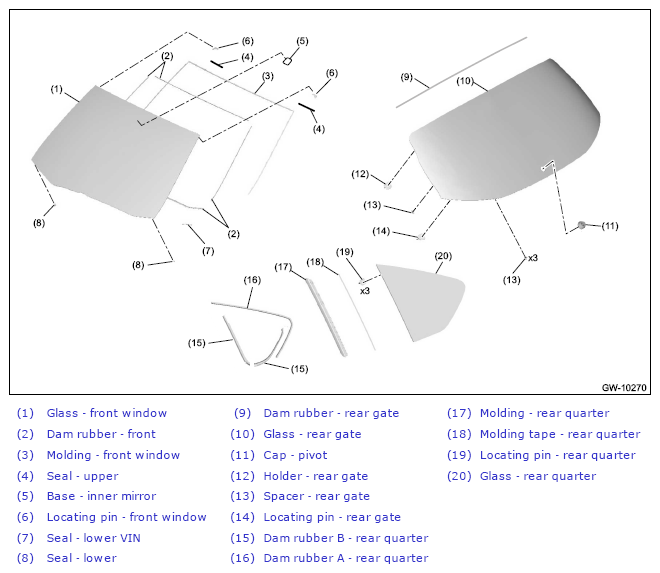

Fixed Glass (5 Door Model)

G13234785Courtesy of SUBARU OF AMERICA, INC.
NOTE: Base - inner mirror cannot be removed from the glass - front window.
