Rear Combination Light Assembly: Installation

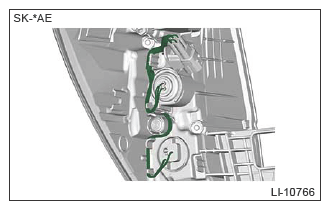

- Install the cord assembly as shown in the figure.
- Install the light assembly rear combination.CAUTION: Be careful not to catch the harness in between the parts.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the cover assembly rear combination light.
- Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
