Radiator & Radiator Fan

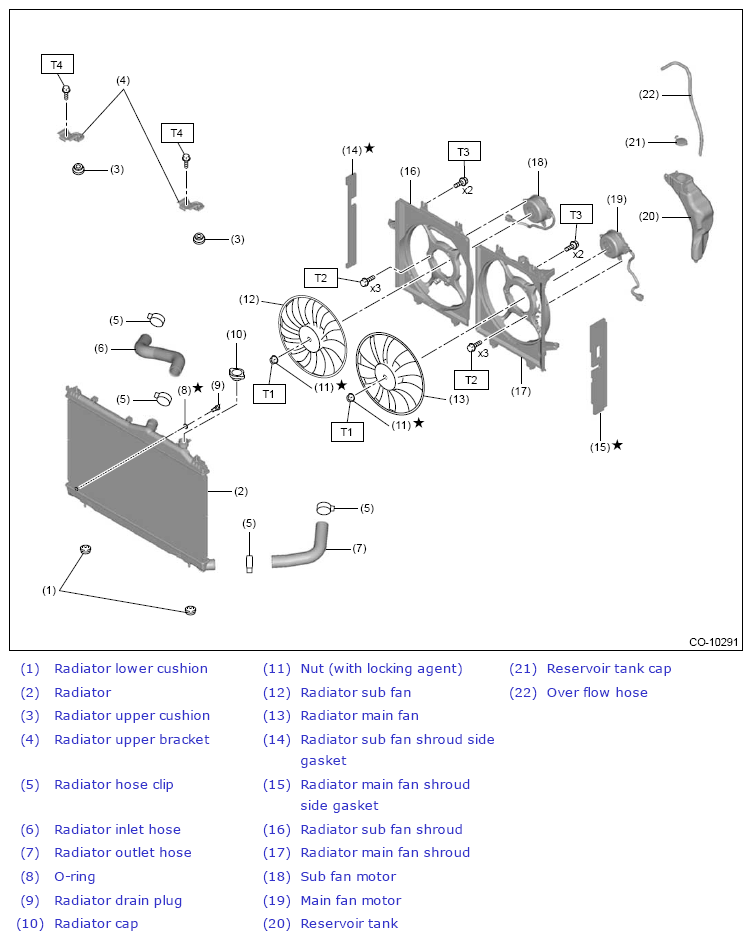

Fig 1: Radiator & Radiator Fan Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 4.4 (0.4, 3.2)

T3: 7.5 (0.8, 5.5)

T4: 12 (1.2, 8.9)
