Air Cleaner Element: Removal

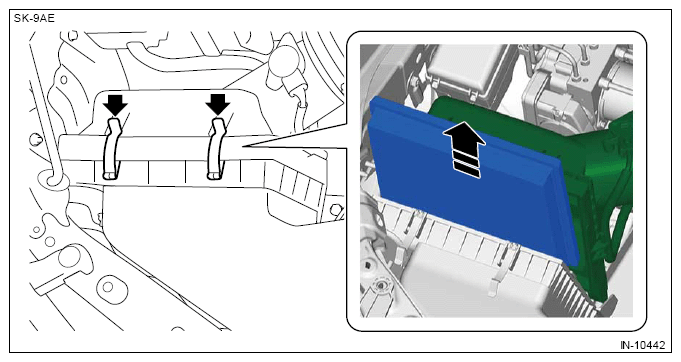

- Disengage the clip to open the air cleaner case (rear) and remove the air cleaner element.
CAUTION:
Be sure to lift up the air cleaner case (rear) before releasing the claws on the bottom of the air cleaner case. Otherwise the air cleaner element may be damaged.
 Courtesy of SUBARU OF AMERICA, INC.
|
