Valve Assembly

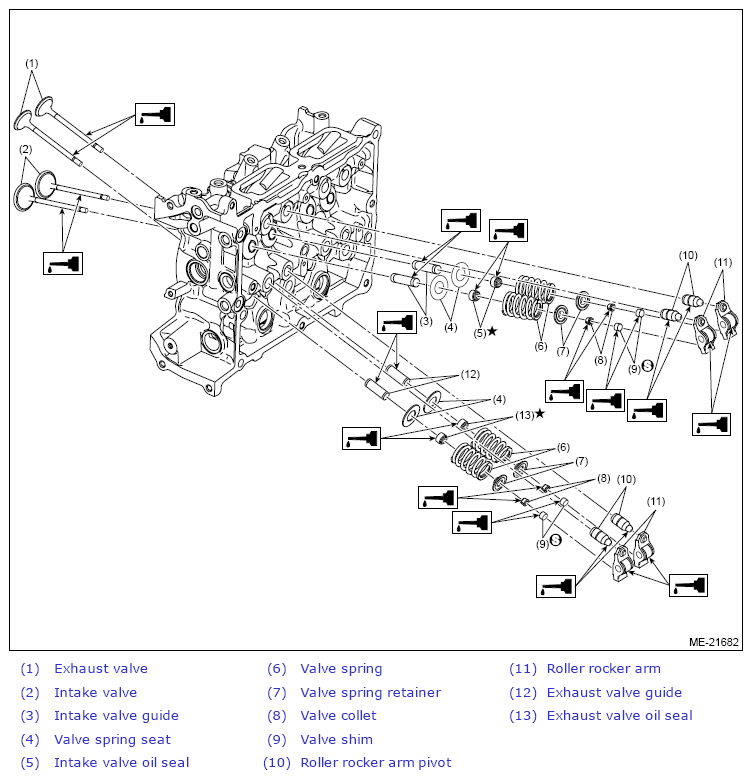

Fig 1: Valve Assembly Components (With Torque Specification)
G13224211Courtesy of SUBARU OF AMERICA, INC.
