Power Rear Gate Inner Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the power rear gate inner switch.

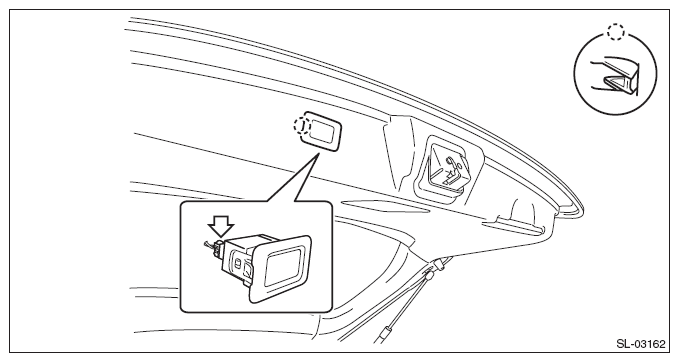

    1. Release the claws and pull out the power rear gate inner switch rearward.
      NOTE: Insert a flat tip screwdriver wrapped with protective tape into the slit on the left.
    2. Disconnect the connector and remove the power rear gate inner switch.
G10309988Courtesy of SUBARU OF AMERICA, INC.
