VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Removal

CAUTION:
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake boot.
  3. Remove the VDC control module & hydraulic control unit (VDCCM&H/U).
    CAUTION:
    • Do not pull on the harness when disconnecting the connector.
    • Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
    • If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.
    1. Remove any dirt from around the VDCCM&H/U.

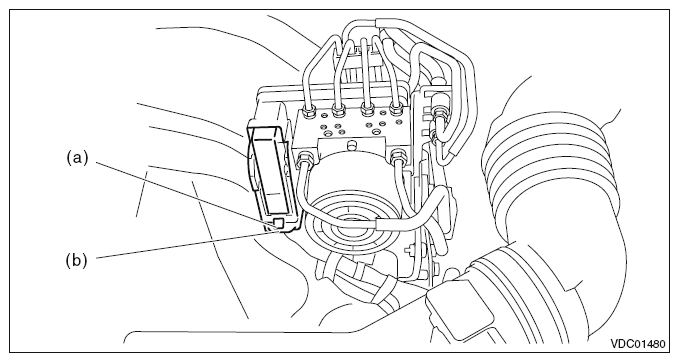

    2. Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDCCM&H/U connector.
      G10315143Courtesy of SUBARU OF AMERICA, INC.
    3. Separate each brake pipe using a flare nut wrench.

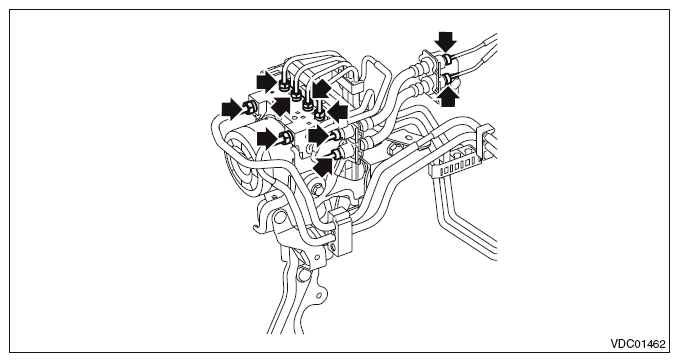

      • Models with EyeSight
        G10315144Courtesy of SUBARU OF AMERICA, INC.

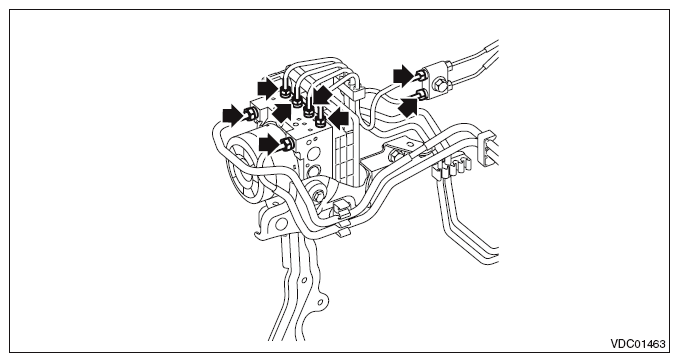

      • Models without EyeSight
        G10315145Courtesy of SUBARU OF AMERICA, INC.

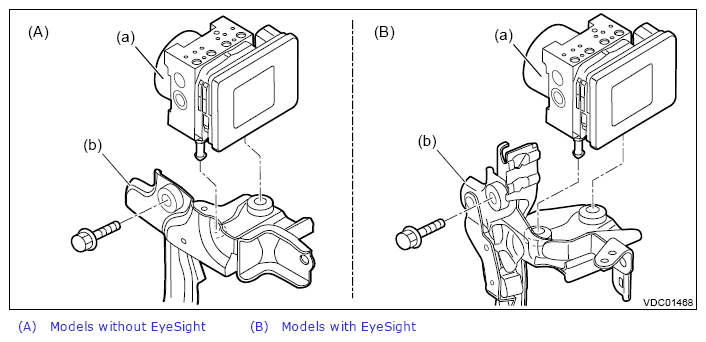

    4. Remove the bolts and nuts and remove the bracket - hydraulic unit (b) and the VDCCM&H/U (a).
      G13249105Courtesy of SUBARU OF AMERICA, INC.
