Front Cushion Rubber

WARNING: This page is about a different variant/trim than selected.

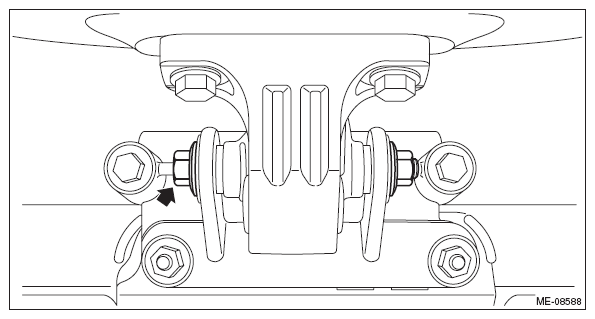

Set the front cushion rubber, and install the bolts securing the front cushion rubber to the chain cover.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

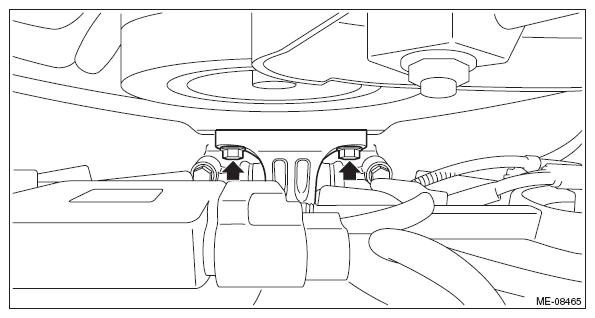

Install the bolts and nuts securing the front cushion rubber to the front mounting bracket.
Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Remove the lifting device and wire ropes.

Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.

Courtesy of SUBARU OF AMERICA, INC.
Connect the engine harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover bracket to the intake manifold.
Tightening torque:

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the engine hanger bracket, and install the engine harness connector (A) to the engine hanger bracket.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the sensor harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>THROTTLE BODY>INSTALLATION .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H6DO)>AIR INTAKE BOOT>INSTALLATION .
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H6DO)>AIR INTAKE DUCT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the collector cover.
Set the front hood to the normal position. Ref. to REPAIR CONTENTS>NOTE>FRONT HOOD DAMPER STAY .
Close the front hood.
