Chain Cover

WARNING: This page is about a different variant/trim than selected.

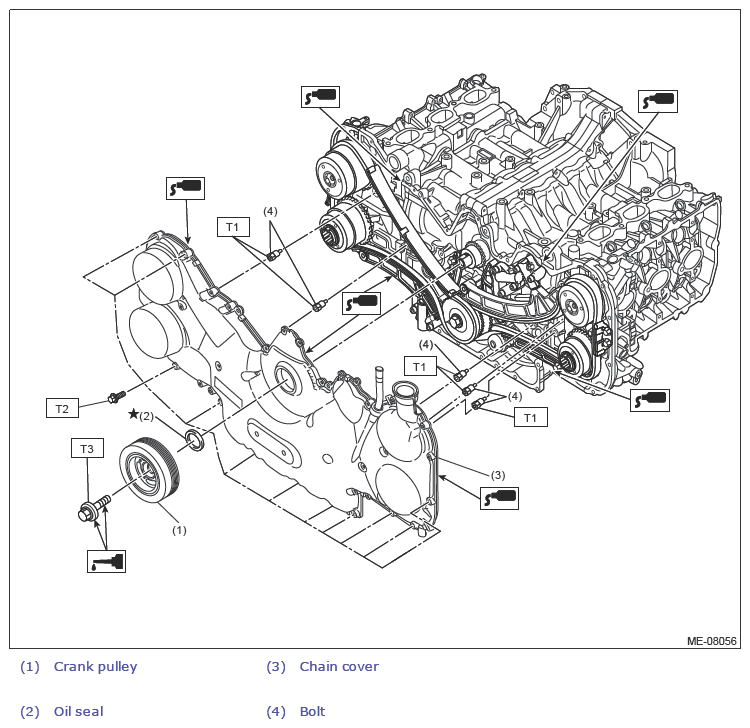

Fig 1: Chain Cover Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 195 (19.9, 143.8)
