Cylinder Block

WARNING: This page is about a different variant/trim than selected.

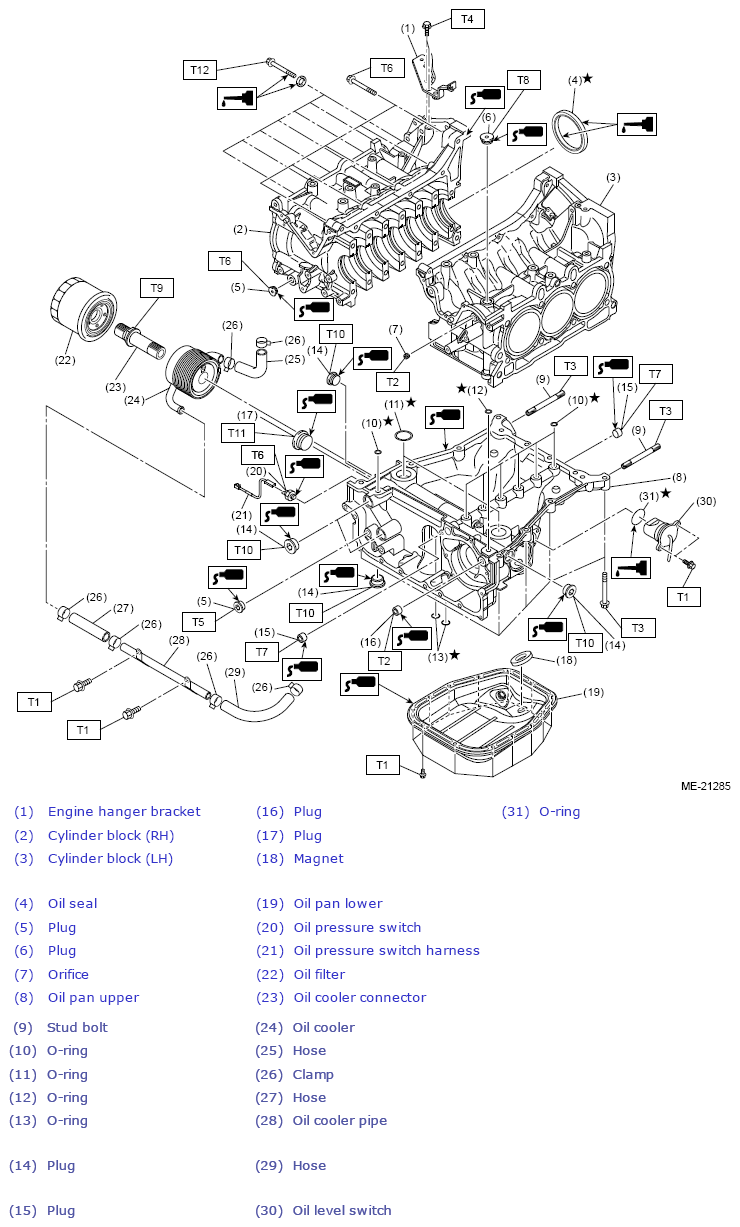

Fig 1: Cylinder Block Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 17 (1.7, 12.5)

T3: 18 (1.8, 13.3)

T4: 19 (1.9, 14.0)

T5: 23 (2.3, 17.0)

T6: 25 (2.5, 18.4)

T7: 34 (3.5, 25.1)

T8: 37 (3.8, 27.3)

T9: 54 (5.5, 39.8)

T10 60 (6.1, 44.3)

T11 90 (9.2, 66.4)
