Front Arm: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the front arm.

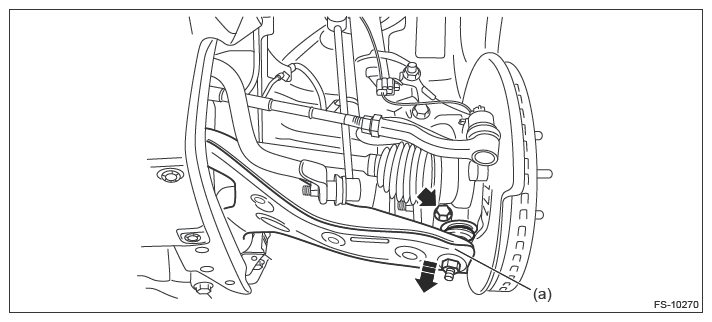

    1. Remove the bolt from the front axle housing.
    2. Lower the arm assembly front (a), and remove the ball stud from the front axle housing.
      CAUTION: Use a tool appropriate to the structure, and be careful not to damage the boot of the joint while removing. The boot may be damaged depending on the tool used.
      G13248669Courtesy of SUBARU OF AMERICA, INC.

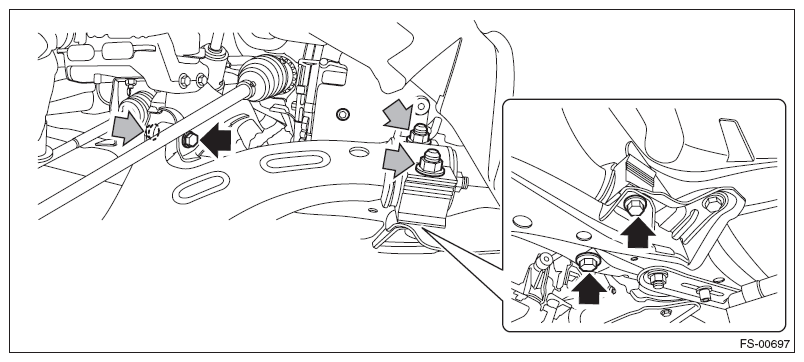

    3. Remove the bolts, then remove the front arm.
      G10276627Courtesy of SUBARU OF AMERICA, INC.
