RH Side

  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H6DO)>AIR CLEANER CASE>REMOVAL .

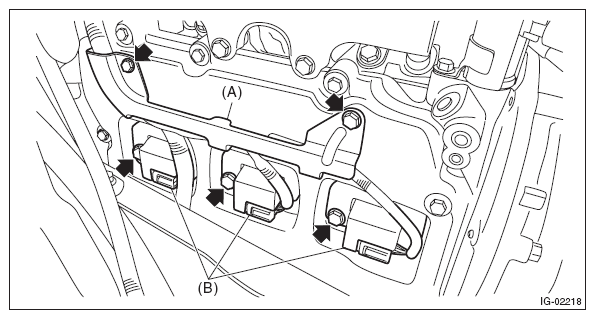

  4. Remove the engine harness stay (A).
  5. Disconnect the connector (B) from ignition coil.
  6. Remove the ignition coil.
    NOTE: Turn the #5 ignition coil to remove it.
    G10264255Courtesy of SUBARU OF AMERICA, INC.

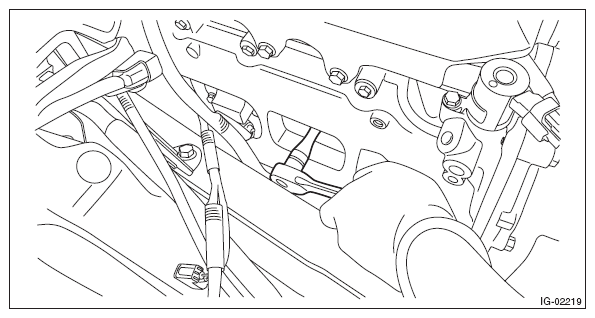

  7. Remove the spark plug with a spark plug socket.
    G10264256Courtesy of SUBARU OF AMERICA, INC.
    G13248480Courtesy of SUBARU OF AMERICA, INC.
