Multi-Function Display (MFD) System: Wiring Diagram

G13263660

Courtesy of SUBARU OF AMERICA, INC.

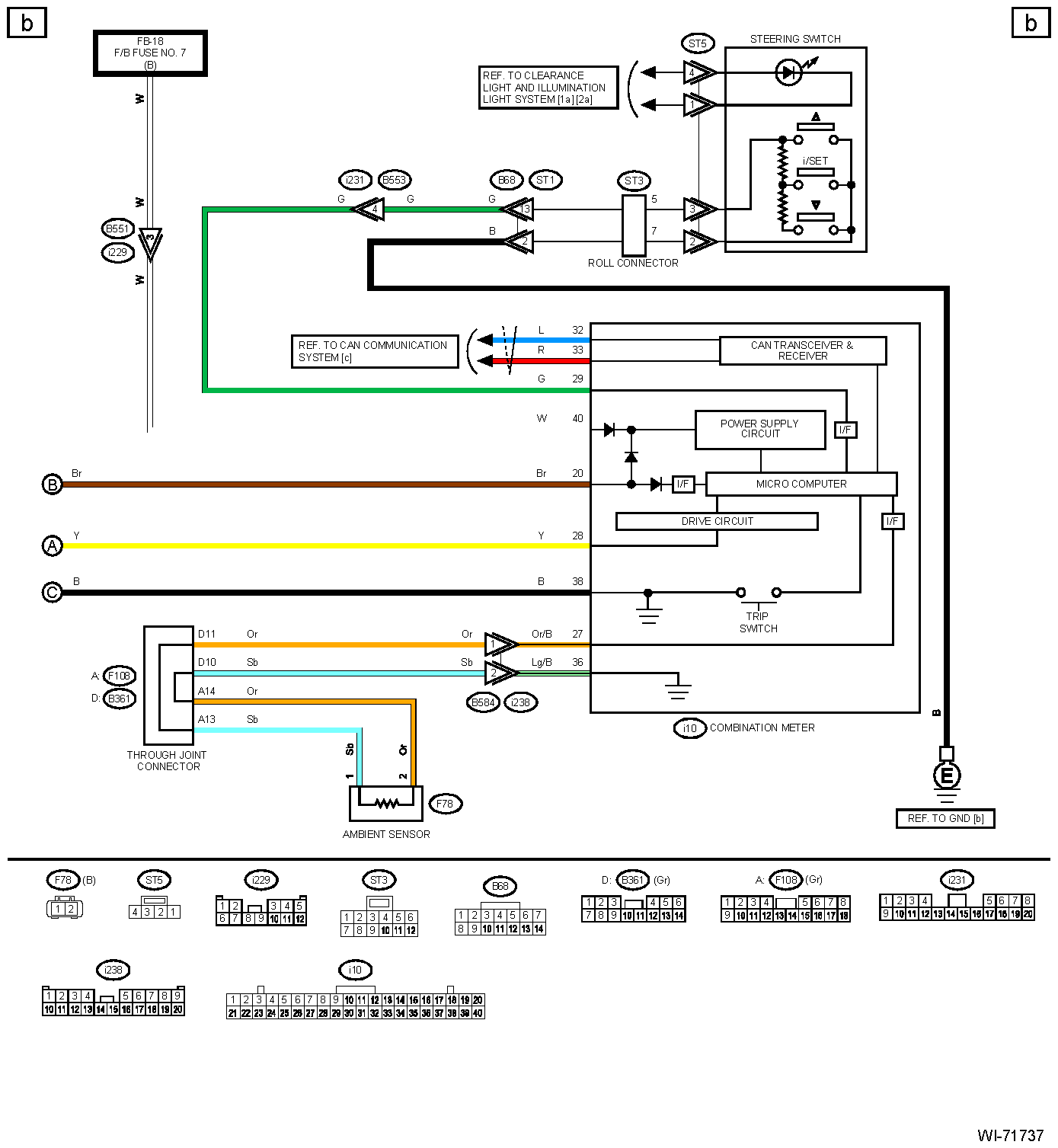

G12456496

Courtesy of SUBARU OF AMERICA, INC.
