Rocker Cover

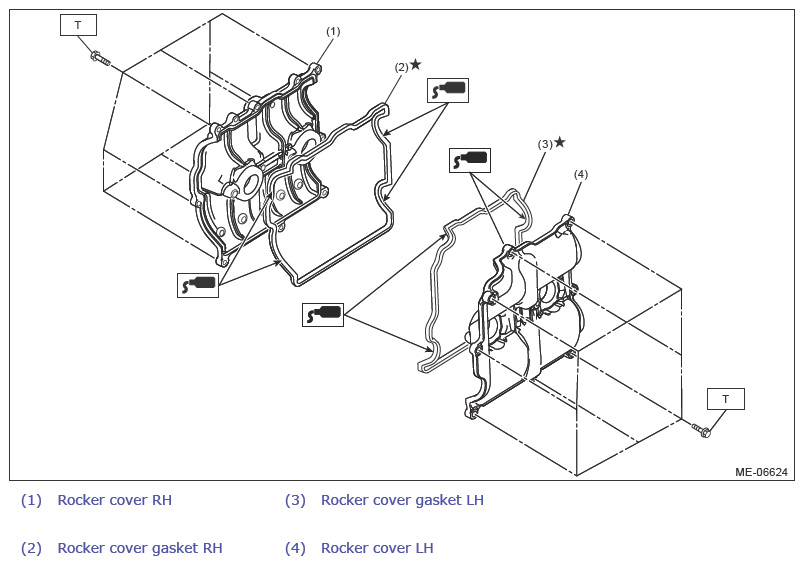

Fig 1: Components Of Rocker Cover (With Torque Specification)
G13258910Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Refer to MECHANICAL (EXCEPT FOR STI)>ROCKER COVER>INSTALLATION .
