Converter Case Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>REMOVAL .
  3. Remove the oil pan and control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
  4. Remove the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>REMOVAL .
  5. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .
  6. Remove the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .
  7. Remove the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .
  8. Remove the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>REMOVAL .
  9. Remove the transfer reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>REMOVAL .
  10. Remove the intermediate case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>REMOVAL .
  11. Remove the forward clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH ASSEMBLY>REMOVAL .
  12. Remove the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CASE>REMOVAL .
  13. Remove the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY PULLEY AND SECONDARY PULLEY>REMOVAL .
  14. Remove the drive pinion shaft assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>REMOVAL .
  15. Remove the oil stopper plate and lubrication pipe.
    G06654753Courtesy of SUBARU OF AMERICA, INC.
  16. Flip over the converter case.
  17. Remove the oil pump chain cover and the oil pump chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PUMP CHAIN>REMOVAL .
  18. Remove the converter case cover.

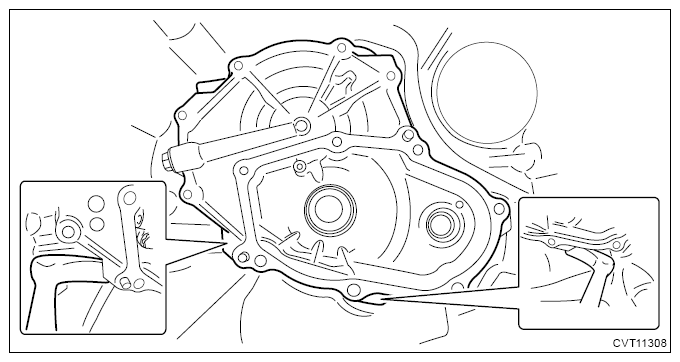

    G13250507Courtesy of SUBARU OF AMERICA, INC.
    G13250508Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the O-rings.
    G09482325Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the seal ring from converter case cover.
    G13250515Courtesy of SUBARU OF AMERICA, INC.
  21. Using the ST, remove the ball bearing from the converter case cover.

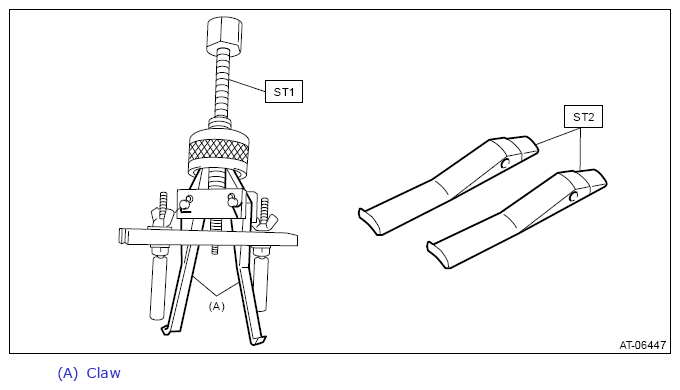

    1. Remove the claw of ST1, and attach the claw of ST2.
      ST1 398527700 PULLER ASSY
      ST2 18760AA000 CLAW
      G13261239Courtesy of SUBARU OF AMERICA, INC.
    2. Using the ST, remove the ball bearing from the converter case cover.
    ST1 398527700 PULLER ASSY
    ST2 18760AA000 CLAW
    G09482328Courtesy of SUBARU OF AMERICA, INC.
