Front Differential Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>REMOVAL .
  3. Remove the oil pan and control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
  4. Remove the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>REMOVAL .
  5. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .
  6. Remove the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .
  7. Remove the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .
  8. Remove the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>REMOVAL .
  9. Remove the transfer reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>REMOVAL .
  10. Remove the intermediate case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>REMOVAL .
  11. Remove the forward clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH ASSEMBLY>REMOVAL .
  12. Remove the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CASE>REMOVAL .
  13. Remove the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY PULLEY AND SECONDARY PULLEY>REMOVAL .
  14. Remove the drive pinion shaft assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>REMOVAL .

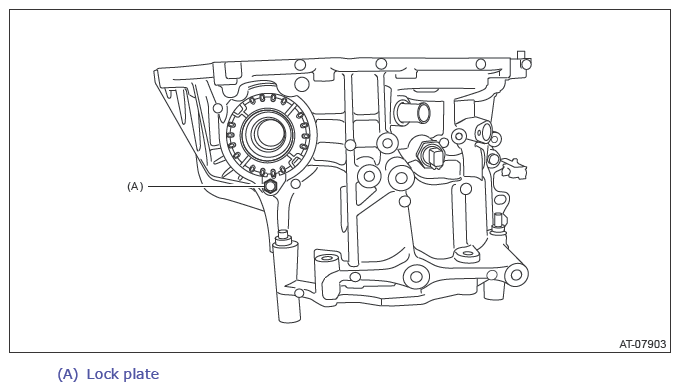

  15. Remove the lock plates on both sides.
    G13261187Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the differential side retainers using ST.
    ST 18658AA020 WRENCH COMPL RETAINER
    NOTE:
    • Support the differential case assembly by hand to avoid damaging the retainer mounting hole of the converter case.
    • When keeping the retainers aside, use labels etc. to avoid confusing the left and right.
    G06654708Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the front differential assembly while being careful not to damage the attachment part of the retainer.
  18. Remove the oil seals and O-rings from both differential side retainers. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL ASSEMBLY>DISASSEMBLY>SIDE RETAINER .
