Inhibitor Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily install the inhibitor switch.
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector to the inhibitor switch.

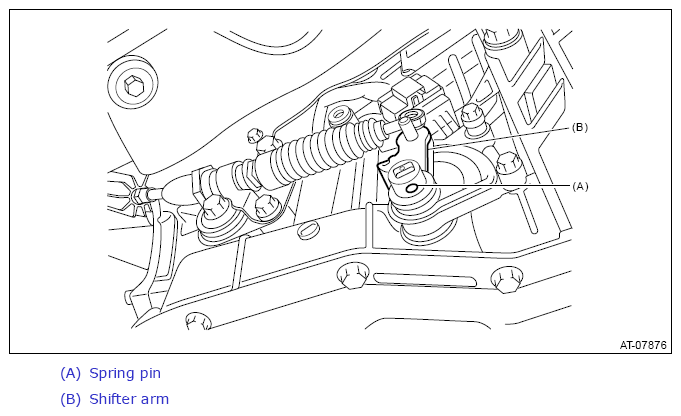

  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.
    G13260913Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.
    ST 499267300 STOPPER PIN
    G06654428Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

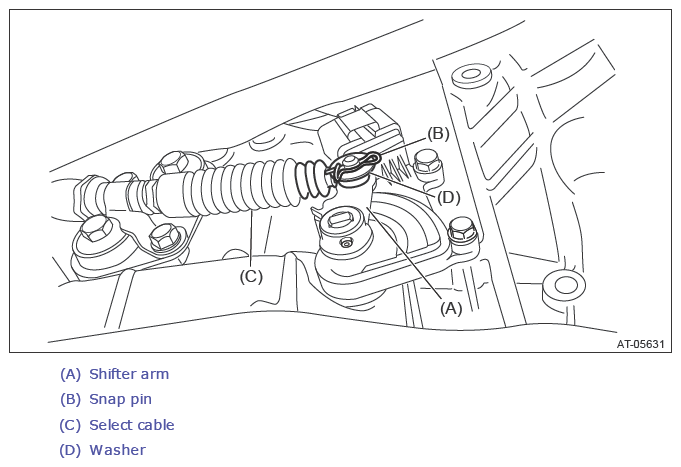

  7. Connect the select cable and install the washer and snap pin.
    CAUTION: Do not apply extra overload while holding the part (A).
    G11255302Courtesy of SUBARU OF AMERICA, INC.
    G13260916Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
  10. Check the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>INSPECTION .
