Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.

Shift the select lever to "N" range.
Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
Lift up the vehicle.

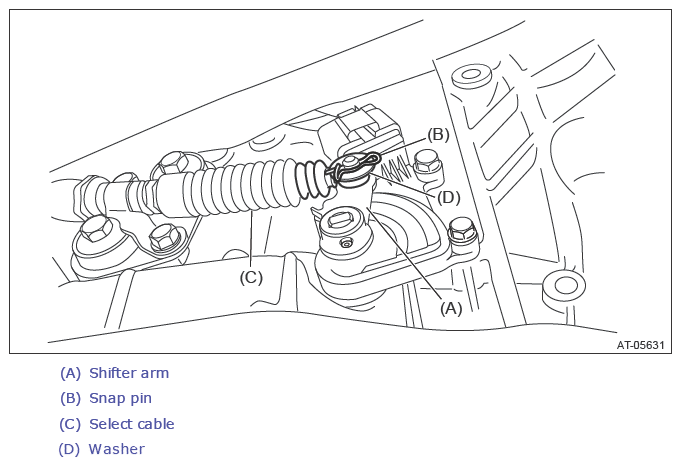

Remove the snap pin and washer, and disconnect the select cable.
CAUTION: Do not apply extra overload while holding the part (A).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

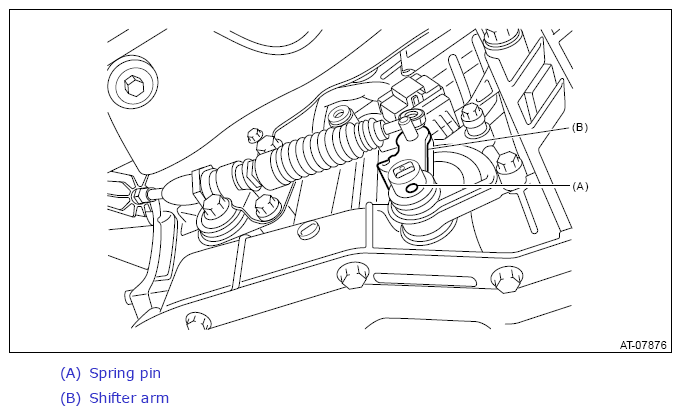

Remove the spring pin and shifter arm.

Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor harness connector from inhibitor switch.
Remove the two inhibitor switch securing bolts.

Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch.
