Oil Pump Chain: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the mating surface of oil pump chain cover and converter case cover.
  2. Using the ST, install the oil seal.
    NOTE: Apply CVTF to the press-fitting area.
    ST 927720000 HOUSING BUSHING INSTALLER AND REMOVER
    G13200339Courtesy of SUBARU OF AMERICA, INC.
  3. Install the drive sprocket and install the snap ring.
    G06654743Courtesy of SUBARU OF AMERICA, INC.
  4. Place the oil pump chain on drive sprocket.
  5. Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.
    G06654747Courtesy of SUBARU OF AMERICA, INC.

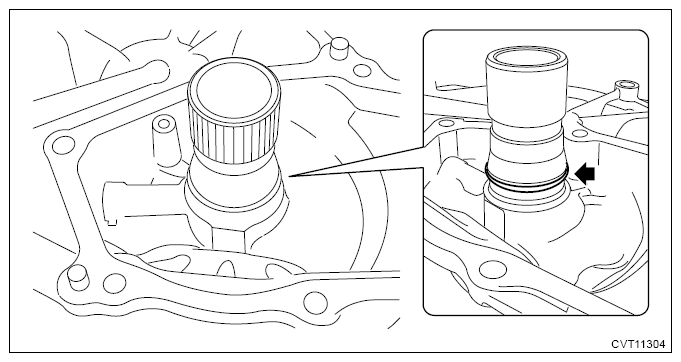

  6. Install the seal ring to center support COMPL.
    NOTE:
    • Use new seal rings.
    • Apply CVTF to the seal rings.
    G13250494Courtesy of SUBARU OF AMERICA, INC.
  7. Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.
    CAUTION: Do not apply liquid gasket at the arrowed hole.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G06654749Courtesy of SUBARU OF AMERICA, INC.
  8. Install the oil pump chain cover.
    NOTE: There are two types of bolt.

    Tightening torque:

    24 N.m (2.4 kgf-m, 17.7 ft-lb)

    G06654750Courtesy of SUBARU OF AMERICA, INC.
  9. Install the torque converter assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER ASSEMBLY>INSTALLATION .
  10. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
