Reverse Brake Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

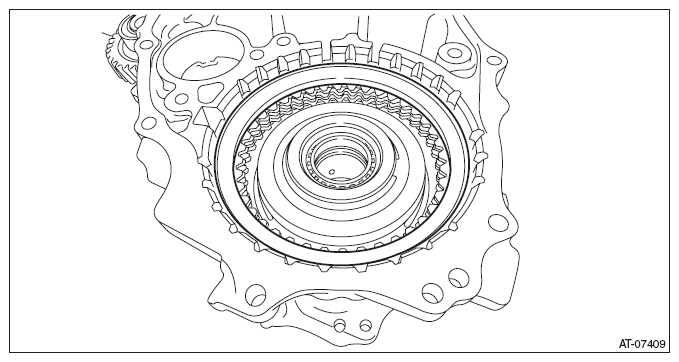

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.

Set the ST1, ST2 and ST3 to intermediate case.

Courtesy of SUBARU OF AMERICA, INC.

Compress the return spring using the set ST to remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

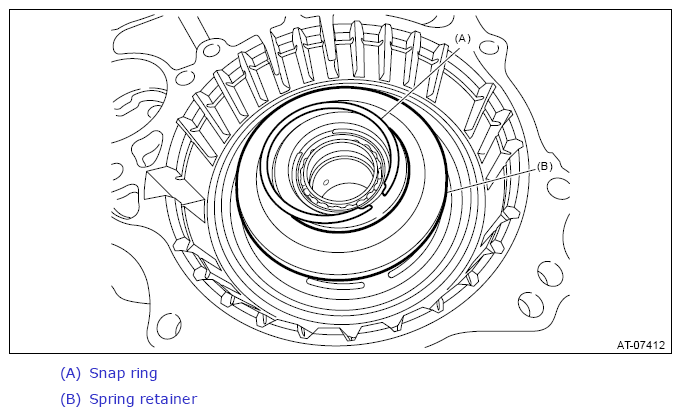

Using the ST, remove the snap ring and spring retainer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.

Courtesy of SUBARU OF AMERICA, INC.
