Torque Converter Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .

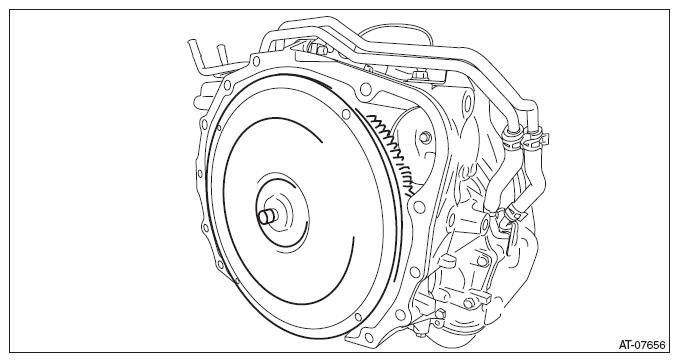

  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.
    G09482062Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the front reduction drive gear.
