Transfer Clutch: Installation

WARNING: This page is about a different variant/trim than selected.

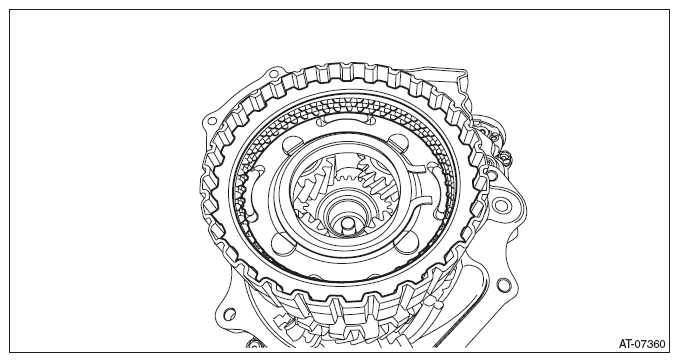

  1. Install the transfer clutch assembly.
    G10268225Courtesy of SUBARU OF AMERICA, INC.
  2. Select driven plate No. 3. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>ADJUSTMENT .
  3. Attach the selected driven plate No. 3 to the center differential assembly.
  4. Install the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  5. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  6. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
