Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the CVTF filter.
NOTE:
- Use a new CVTF filter.
- Apply CVTF to the CVTF filter.
- Make sure that the CVTF filter does not protrude from the transmission case.
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the oil seal.

ST 18657AA000 INSTALLER

Courtesy of SUBARU OF AMERICA, INC.

Using ST1 and ST2, install the ball bearing on the reduction gear side.

NOTE: Use a new ball bearing.

ST1	398177700	INSTALLER
ST2	499755602	PRESS SNAP RING

Courtesy of SUBARU OF AMERICA, INC.

Using ST1 and ST2, install the roller bearing on primary pulley side.

NOTE:

ST1	398177700	INSTALLER
ST2	20299AG010	BASE

Courtesy of SUBARU OF AMERICA, INC.

Install the snap ring on primary pulley side.
NOTE: Use new snap rings.

Courtesy of SUBARU OF AMERICA, INC.

Using ST1 and ST2, install the roller bearing on secondary pulley side.

NOTE:

ST1	398177700	INSTALLER
ST2	499755602	PRESS SNAP RING

Courtesy of SUBARU OF AMERICA, INC.

Install the snap ring on secondary pulley side.
NOTE: Use new snap rings.

Courtesy of SUBARU OF AMERICA, INC.
Install all plugs.
NOTE: Use new gaskets and O-rings.

Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T3: 35 N.m (3.5 kgf-m, 25.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the lubrication pipe and O-ring.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

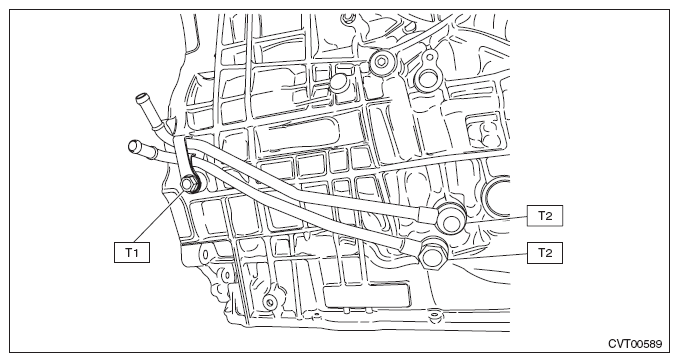

Install the CVTF inlet pipe and CVTF outlet pipe.
NOTE: Use a new gasket.

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
