Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

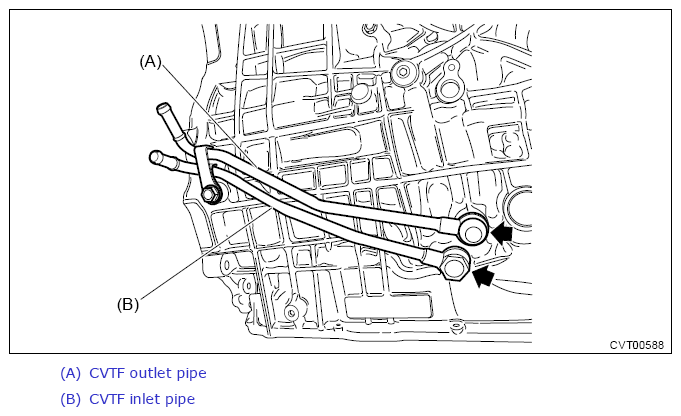

Remove the CVTF inlet pipe and CVTF outlet pipe.

Courtesy of SUBARU OF AMERICA, INC.
Remove all plugs from the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Remove the lubrication pipe.

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing from reduction driven gear using ST.

ST 398527700 PULLER ASSY

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring on primary pulley side.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing on primary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

ST 398527700 PULLER ASSY

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring on secondary pulley side.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing on secondary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

ST 398527700 PULLER ASSY

Courtesy of SUBARU OF AMERICA, INC.

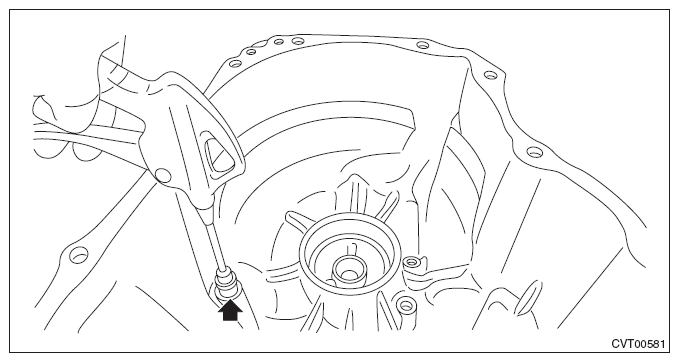

Remove the CVTF filter by blowing compressed air through the transmission case hole.

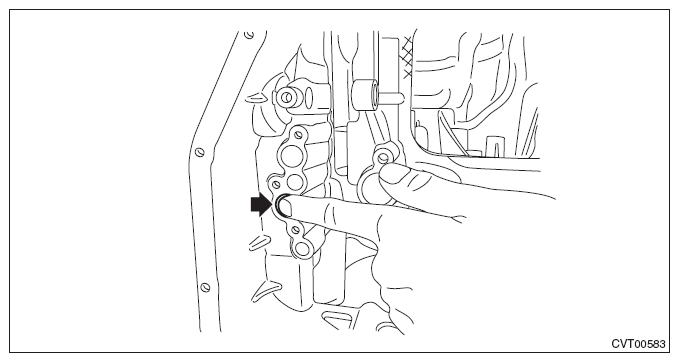

NOTE: Hold the CVTF filter with a finger to prevent compressed air from leaking.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
