Except For STI Model

  1. Remove the transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY75)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .

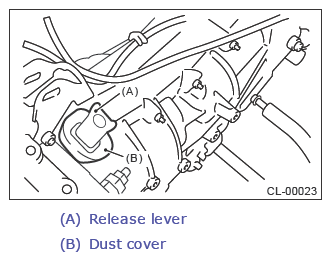

  2. Remove the dust cover.
    G13260680Courtesy of SUBARU OF AMERICA, INC.

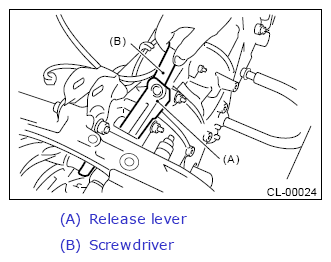

  3. Remove the attachment point of lever spring by inserting a screwdriver through the clutch housing release lever hole. Then remove the release lever together with the release bearing.
    G13260681Courtesy of SUBARU OF AMERICA, INC.
  4. Separate the release lever and the release bearing.
