Before Overhaul

WARNING: This page is about a different variant/trim than selected.
  1. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>REMOVAL .

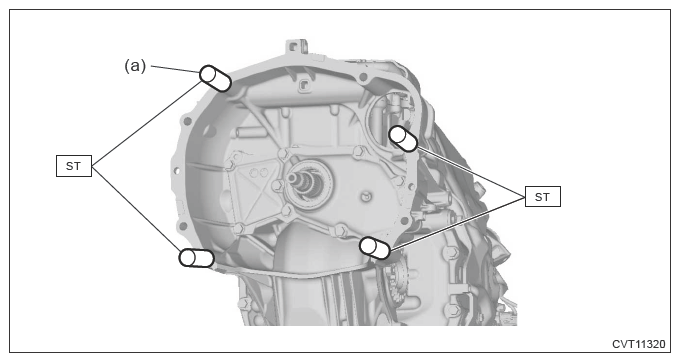

  3. Install the ST and place the transmission body.
    NOTE:
    • When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.
    • Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

G13951176Courtesy of SUBARU OF AMERICA, INC.
