System Block Diagram

G13873563

Courtesy of SUBARU OF AMERICA, INC.

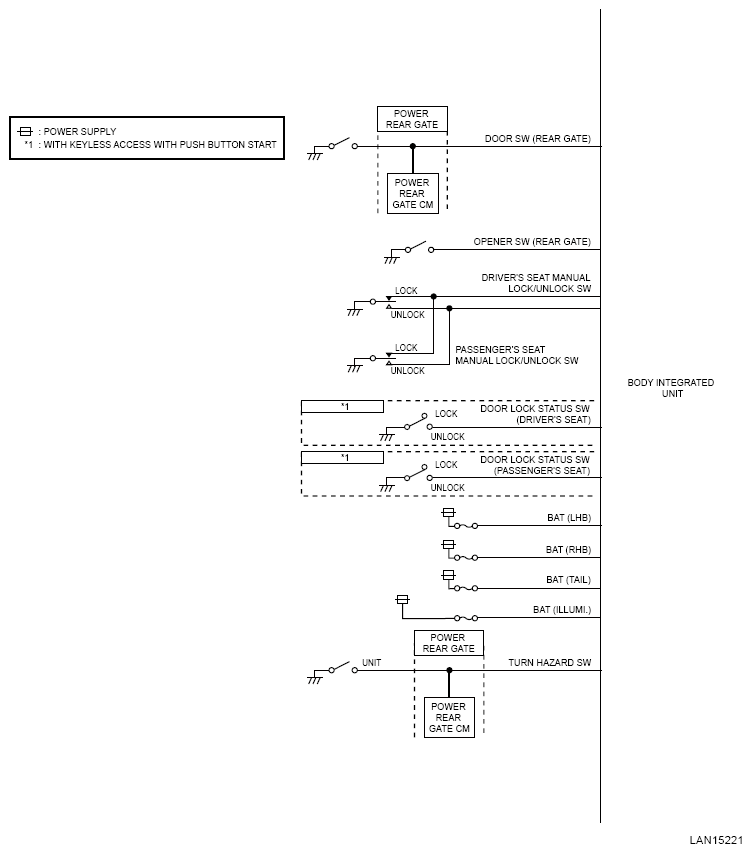

G16447340

Courtesy of SUBARU OF AMERICA, INC.

G13873565

Courtesy of SUBARU OF AMERICA, INC.

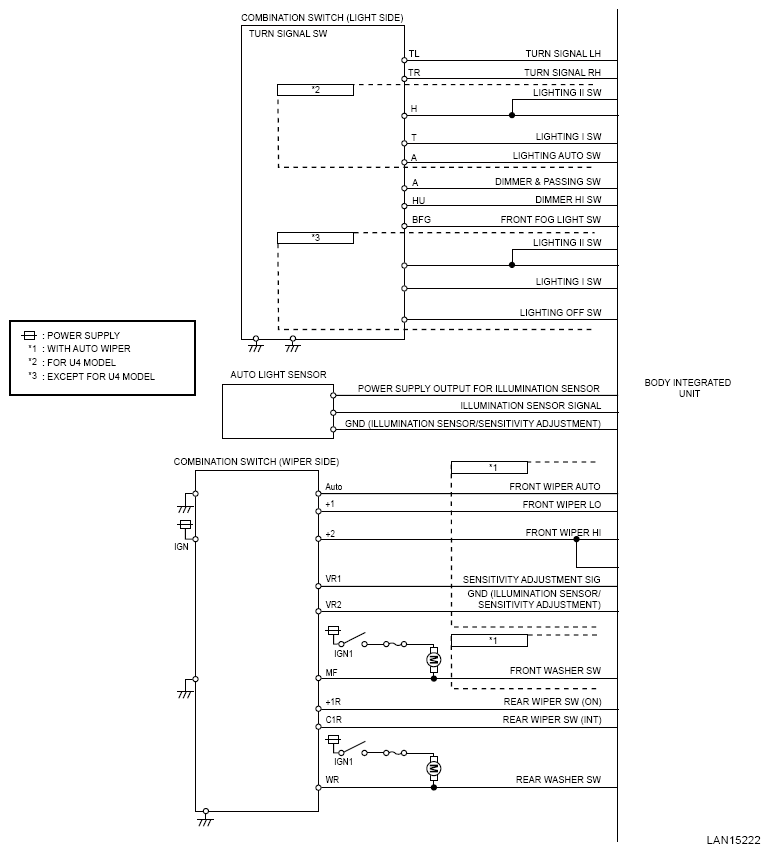

G16447342

Courtesy of SUBARU OF AMERICA, INC.

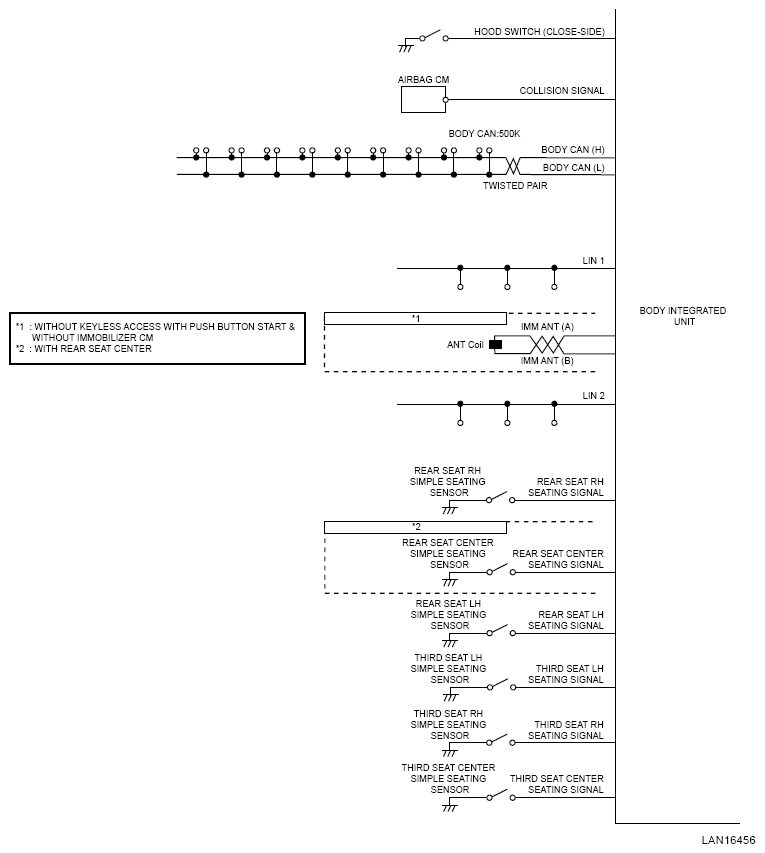

G16447343

Courtesy of SUBARU OF AMERICA, INC.

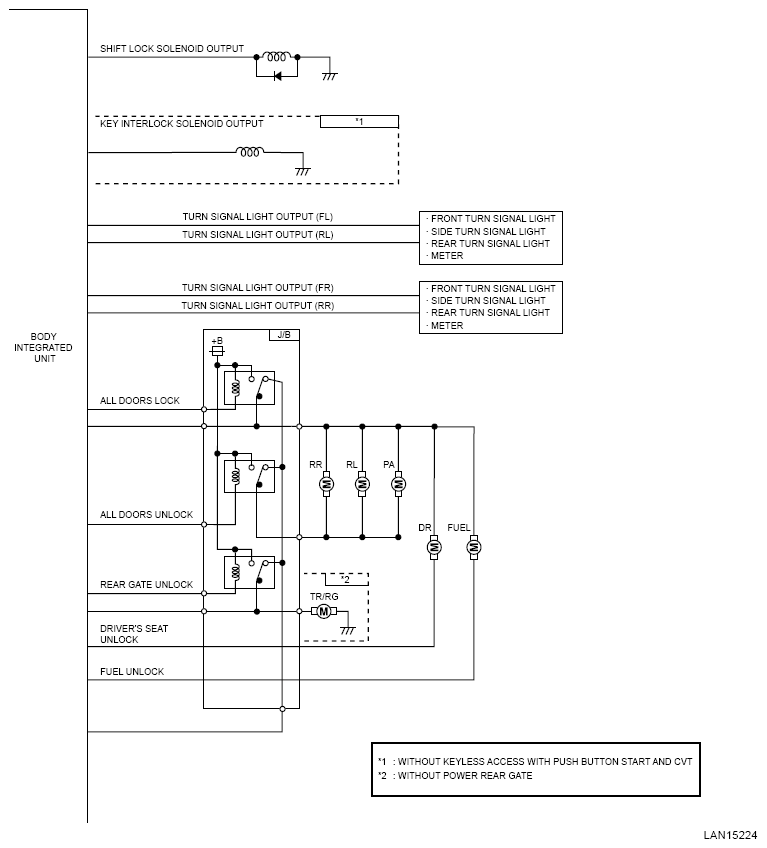

G16447344

Courtesy of SUBARU OF AMERICA, INC.

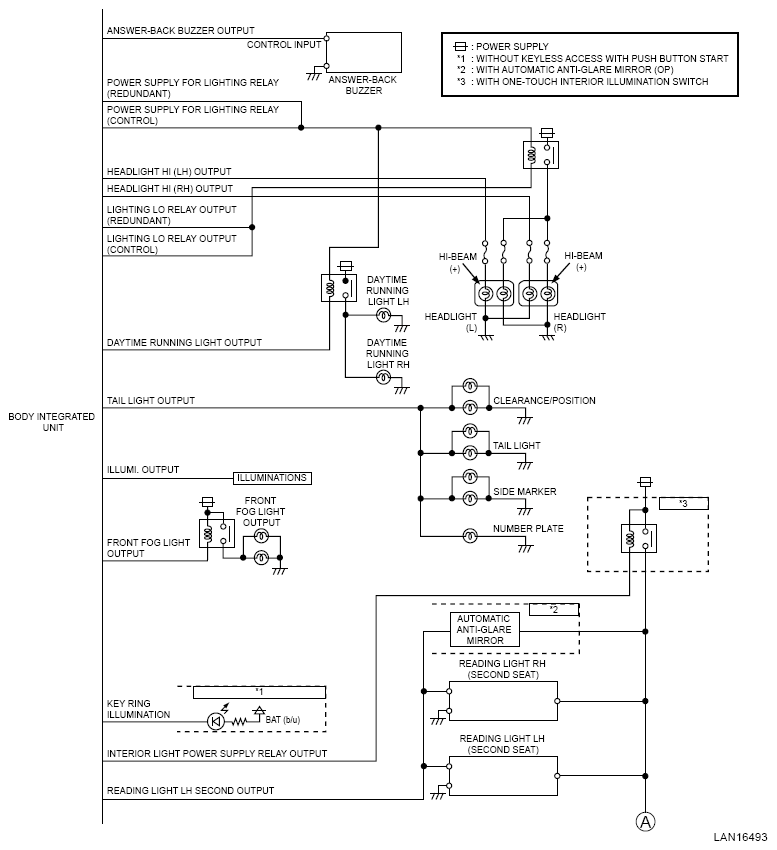

G16447345

Courtesy of SUBARU OF AMERICA, INC.

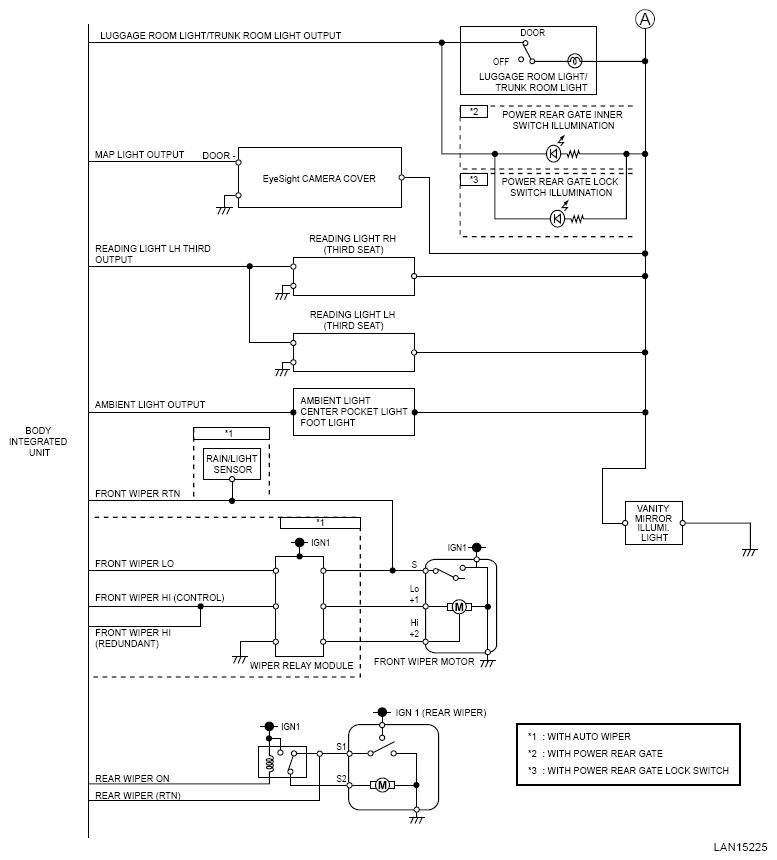

G16447346

Courtesy of SUBARU OF AMERICA, INC.

G13873571

Courtesy of SUBARU OF AMERICA, INC.
