Brake Control System (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

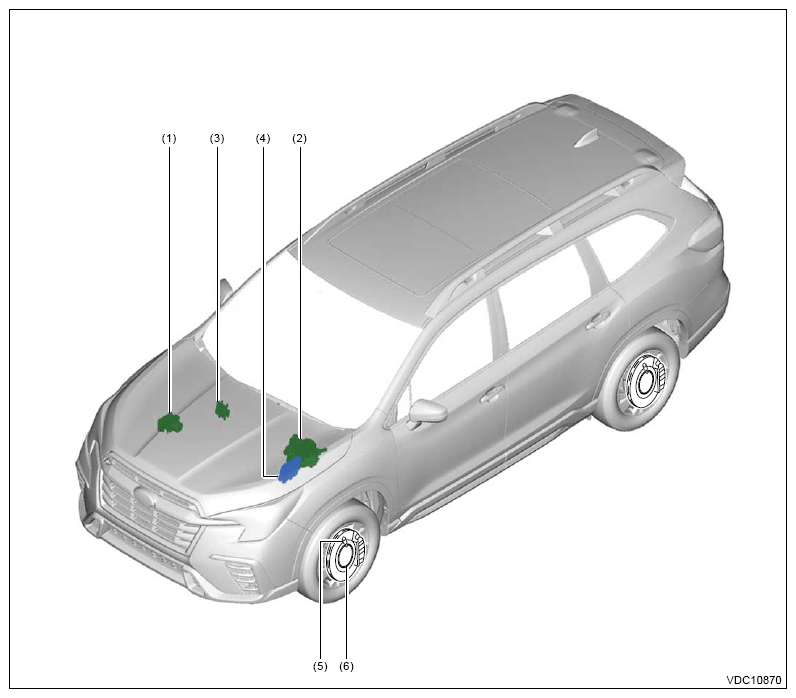

(1)	VDCCM & H/U
(2)	Electric brake booster control module (master cylinder)
(3)	TCM
(4)	ECM
(5)	ABS wheel speed sensor
(6)	Magnetic encoder

Courtesy of SUBARU OF AMERICA, INC.

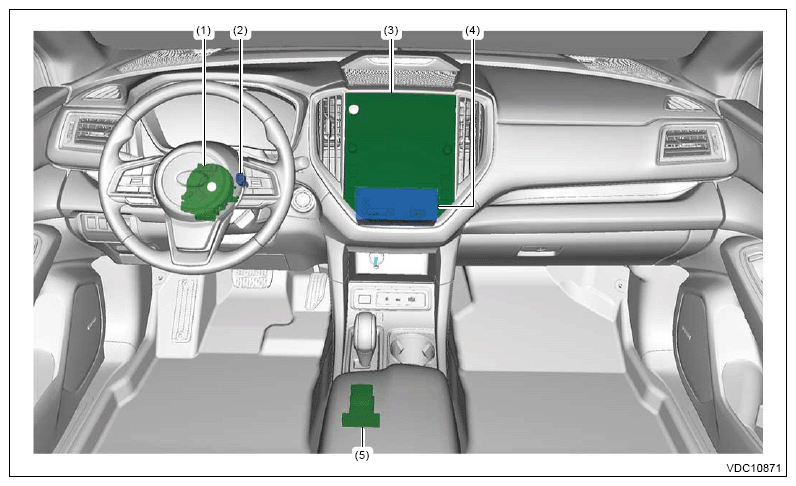

(1)	Steering angle sensor
(2)	Stop light and brake switch
(3)	VDC OFF switch and AVH switch (center information display)
(4)	Cockpit control module
(5)	Electronic parking brake switch

Courtesy of SUBARU OF AMERICA, INC.

(1)	Stop light relay
