General Description
>>
System Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

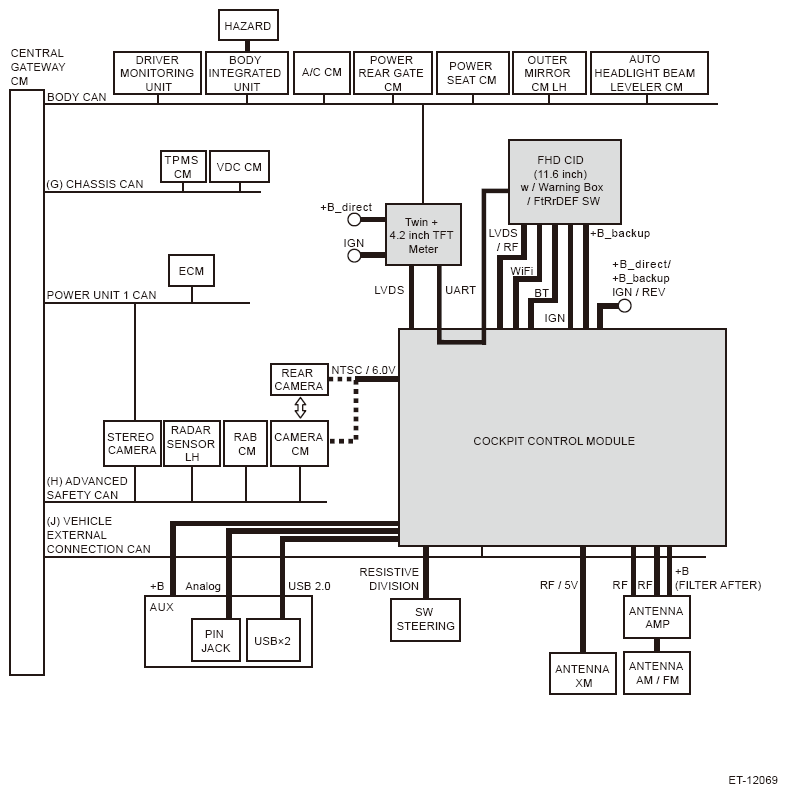

System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT AUDIO AMPLIFIER AND WITHOUT TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT AUDIO AMPLIFIER AND WITH TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
WITH AUDIO AMPLIFIER AND WITH TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
