Prohibited Area For Repair And Inspection

The illustration below shows from outside of the compartment.

If the damage is found in the glass repair prohibited area, always replace the glass. Damage in the prohibited area can affect the recognition of the stereo camera and the wide angle mono camera even if it is repaired, and thereby EyeSight function may not operate properly.

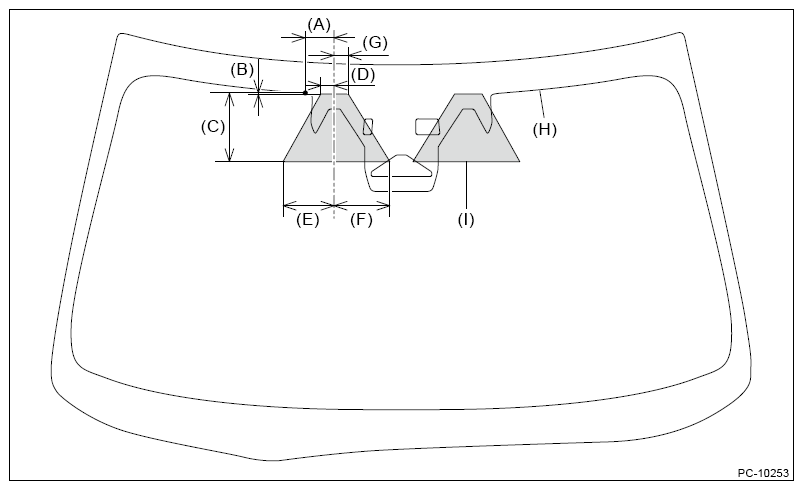

• Glass repair prohibited area of the stereo camera

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	75.0 mm (2.95 in)
  (B)	5.0 mm (0.20 in)
  (C)	180.0 mm (7.09 in)
  (D)	35.0 mm (1.38 in)
  (E)	135.0 mm (5.31 in)
  (F)	145.0 mm (5.71 in)
  (G)	35.0 mm (1.38 in)
  (H)	Ceramic line
  (I)	Prohibited area

• Glass repair prohibited area of the wide angle mono camera

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	40.0 mm (1.57 in)
  (B)	30.0 mm (1.18 in)
  (C)	80.0 mm (3.15 in)
  (D)	145.0 mm (5.71 in)
  (E)	70.0 mm (2.76 in)
  (F)	140.0 mm (5.51 in)
  (G)	Ceramic line
  (H)	Prohibited area
  (I)	Angle of view area of the wide angle mono camera
