Reduction Driven Gear: Removal

  1. Remove the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>REMOVAL .

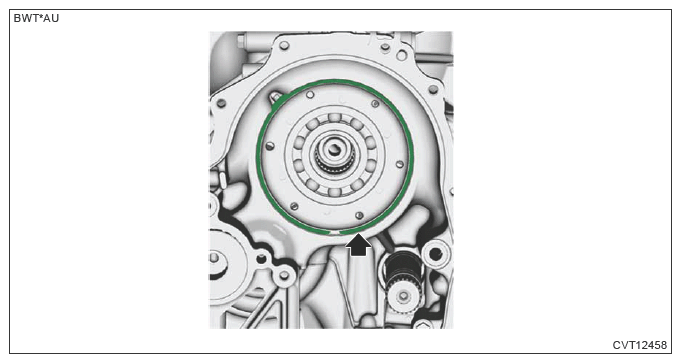

  2. Remove the snap ring.
    G13622200Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reduction driven gear.
    G13622201Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the straight pin.
    G13622202Courtesy of SUBARU OF AMERICA, INC.
